Vertical Turning Machine

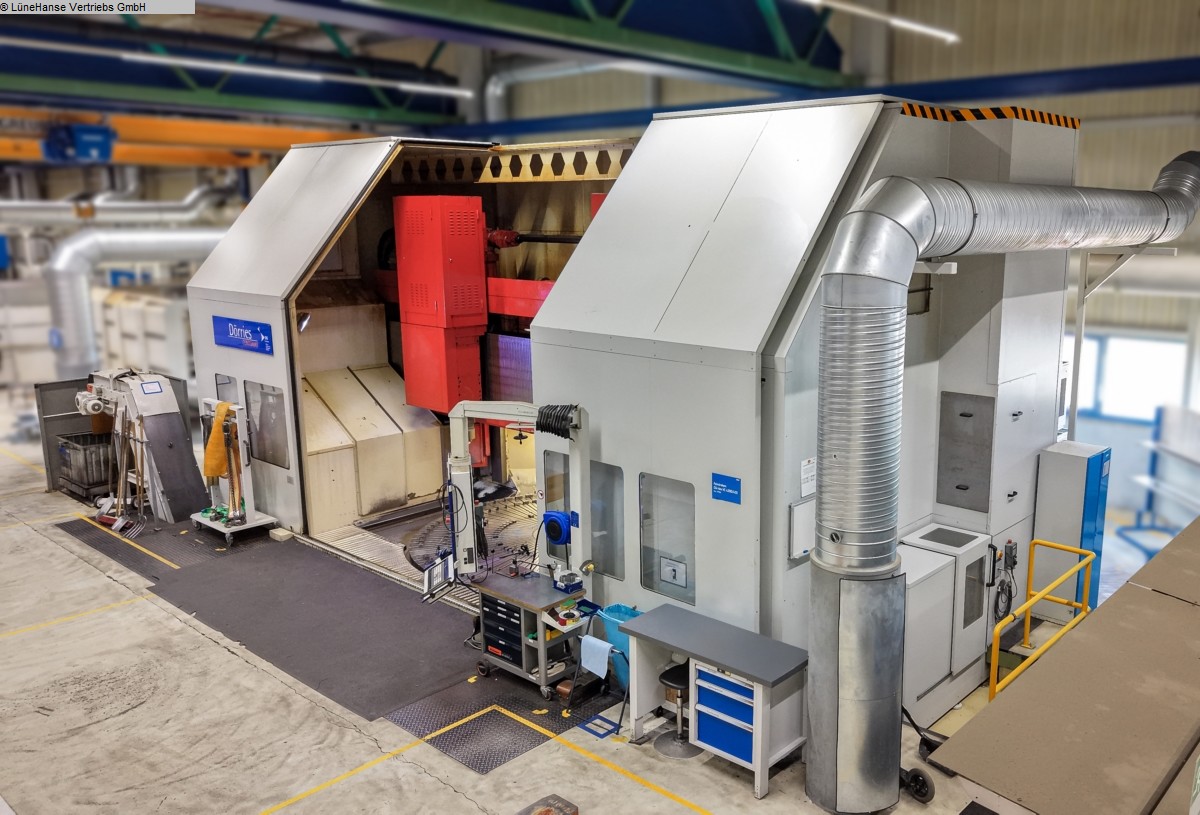

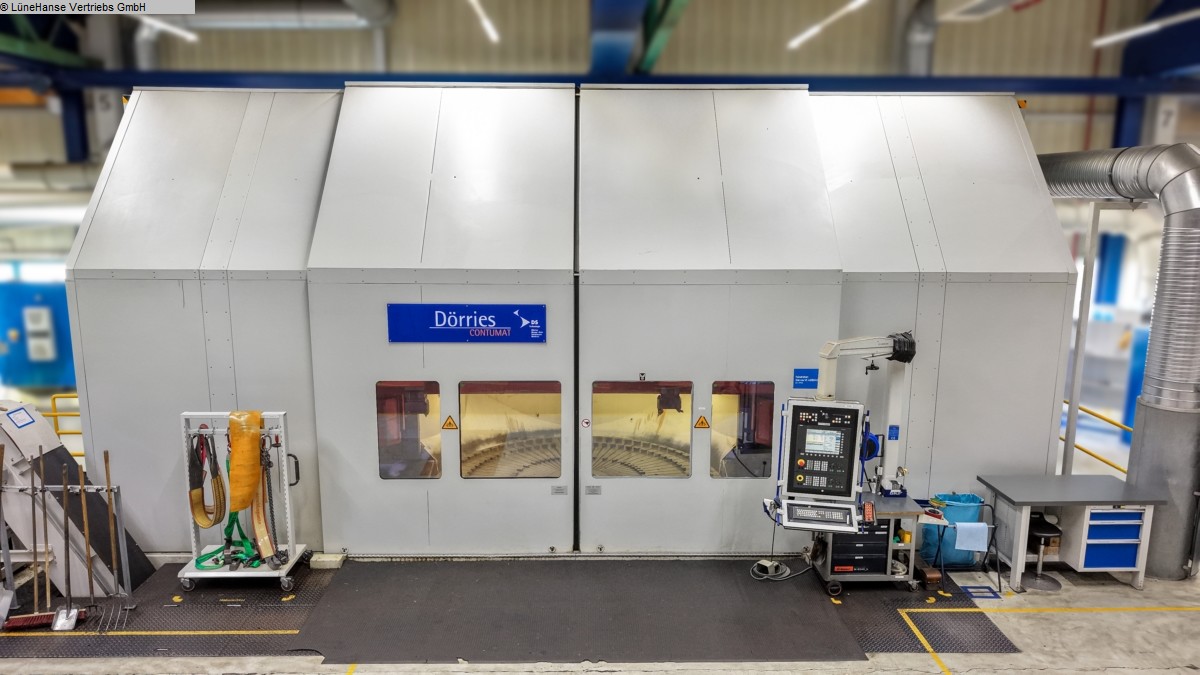

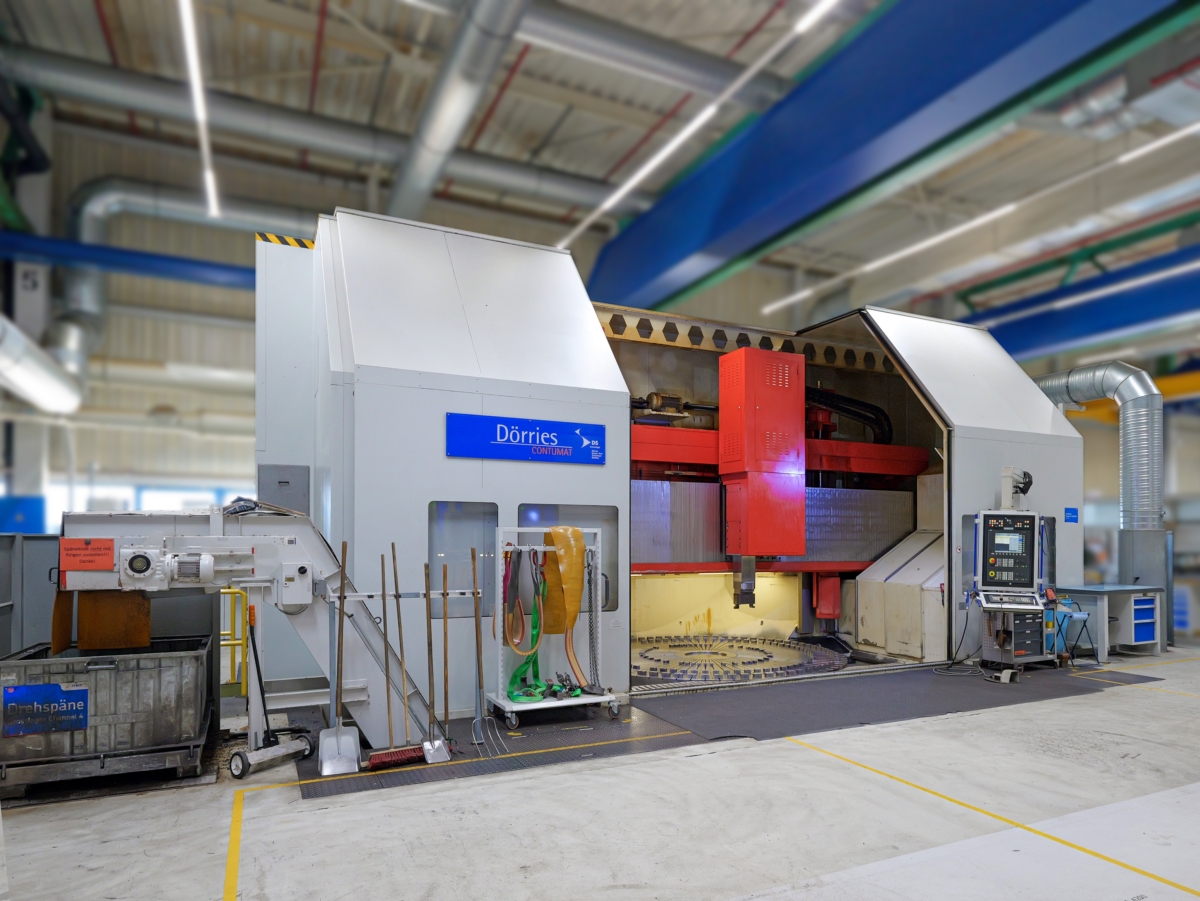

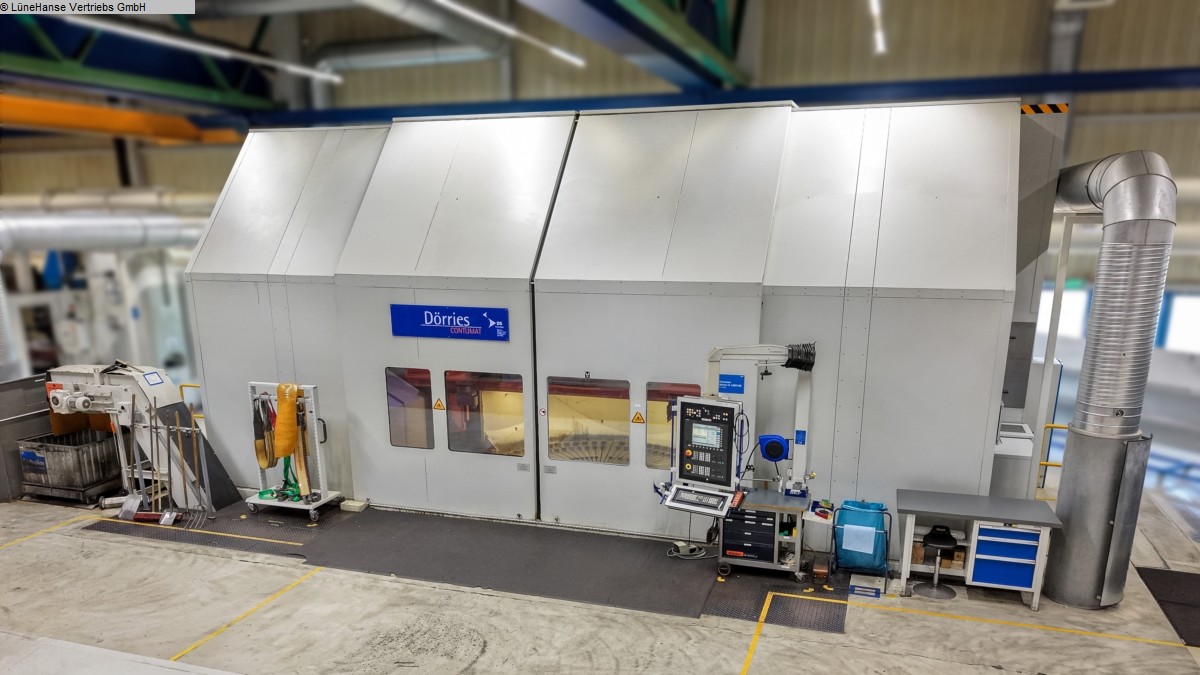

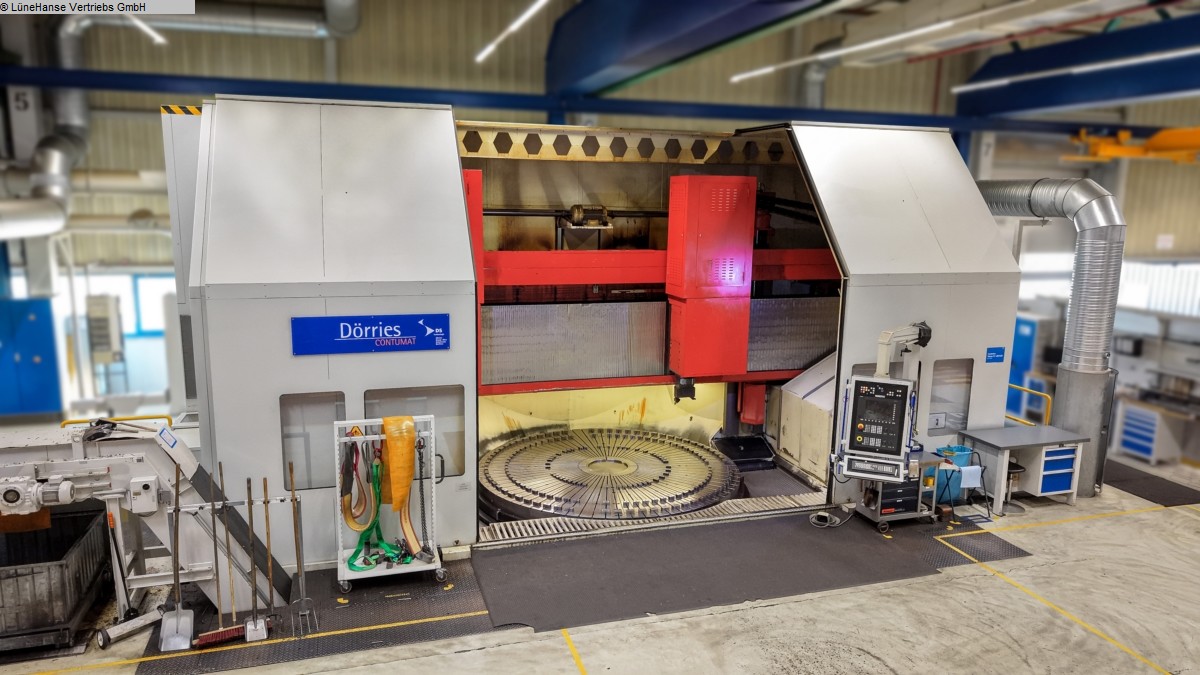

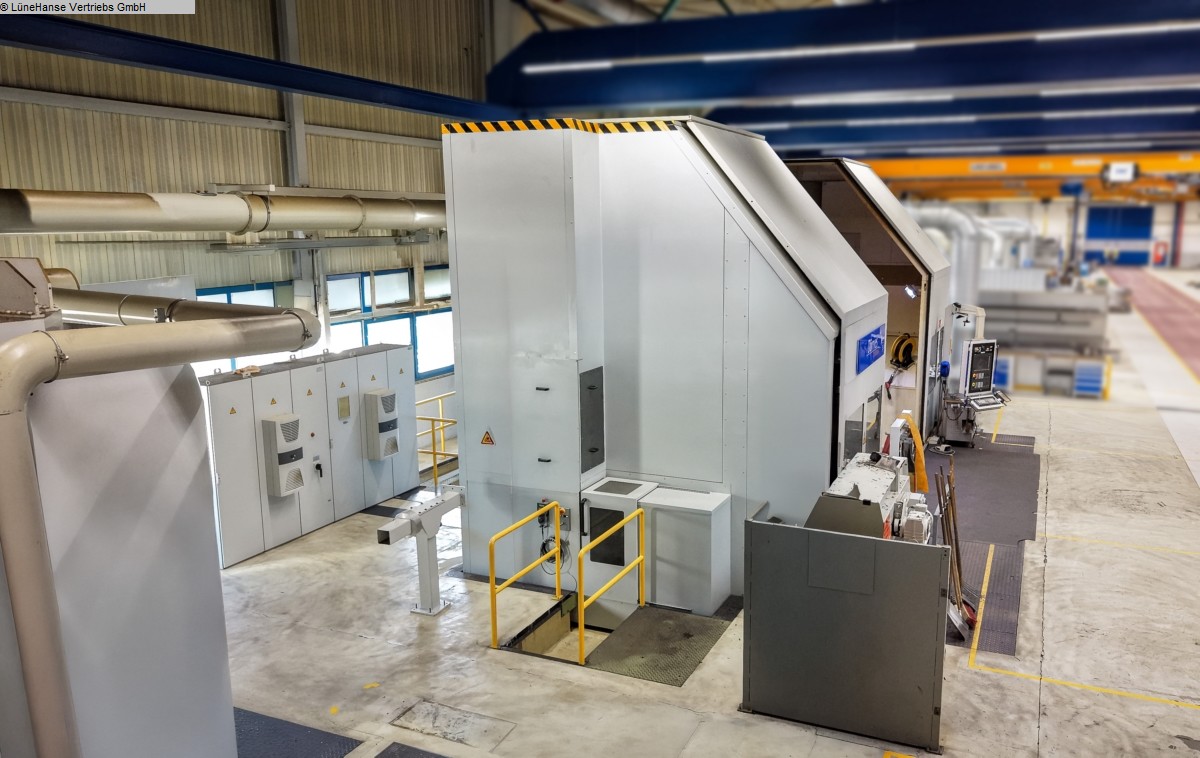

DÖRRIES-SCHARMANN VC 4200

VC 4200
CNC
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
Previous
Next
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
DÖRRIES-SCHARMANN VC 4200
Previous Prev
Next Next
Videos
Video
prev Prev
Next next
Vertical Turning Machine

DÖRRIES-SCHARMANN VC 4200

VC 4200
CNC
Order now

Details

  • Number2086-768
  • ManufacturerDÖRRIES-SCHARMANN
  • TypeVC 4200
  • ControlCNC
  • Year2008
  • Delivery timeimmediately
  • Freight basisex Site
  • LocationWürzburg
  • OriginGermany

Technical details

  • table diameter4.000 mm
  • swing diameter4.500 mm
  • turning height1.600 mm

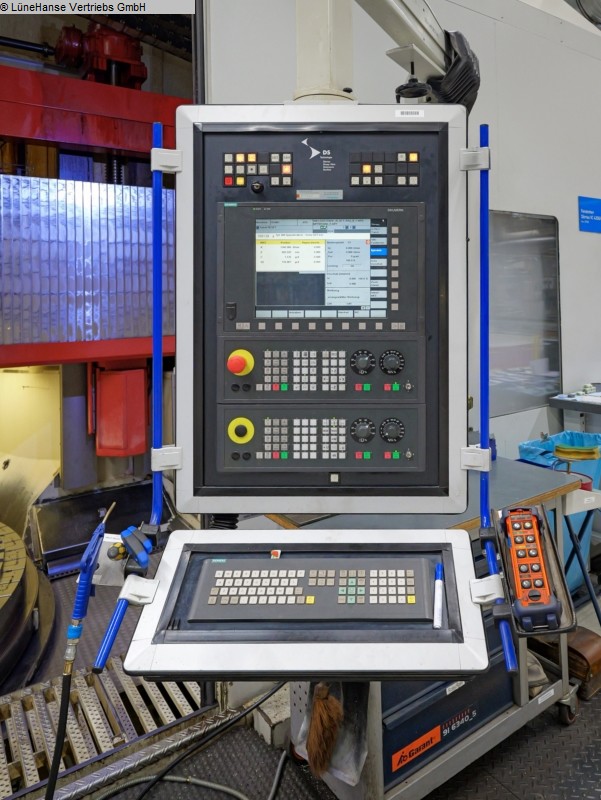

  • ControlSIEMENS 840D
  • DIMENSIONS & TRAVEL RANGES
  • Cross-section of tool slide250 x 250 mm
  • tool slide travel - right1.000 mm
  • tool slide travel - left1.000 mm
  • Crossbeam travel500 mm
  • in steps of250 mm
  • Crossbeam support - Travel distances on the right
  • ... from the center of rotation to the right2.300 mm
  • ... from the center of rotation to the left150 mm
  • ... tool change path on the right1.200 mm
  • Crossbeam support - Travel distances on the left
  • ... from the center of rotation to the left2.300 mm
  • ... from the center of rotation to the right150 mm
  • ... tool change path on the left1.200 mm
  • minimum retracted position to tool slide center1.000 mm
  • MACHINE TABLE DRIVE
  • power capacity1 x 100 kW
  • transmission ratio2
  • Max. rotational speed140 min/1
  • Speed range - Gear stage 10,6 - 7,9 - 34 min/1
  • Speed range - Gear stage 22,9 - 41,0 - 140 min/1
  • max. table load50 t
  • FEED DRIVE
  • Crossbeam feed rate, horizontal18 m/min
  • Crossbeam feed rate, vertical18 m/min
  • cross beam rapid speed, horizontal18 m/min
  • cross beam rapid speed, vertical18 m/min
  • adjustment speed of cross-rail400 mm/min
  • MAGNETIC CLAMPING PLATE
  • MakeSAV
  • type244.71
  • Max. workpiece temperature80 °C
  • Max. holding force170 N/cm²
  • Magnetic clamping360 V
  • Max. magnetizing current30 A bis Ø 800 mm
  • Max. magnetizing current60 A für Ø 1000 mm
  • Max. magnetizing current2x60 A bis Ø 1600 mm
  • Dörries tool system for chisel holders250.2
  • Turning tool systemCapto C6
  • Cutting force turning tool, r. cross-slide support50 KN
  • Cutting force turning tool, l. cross-slide support40 KN
  • ELECTRICAL CONNECTION DATA
  • voltage400 V AC
  • control voltage24 V DC
  • frequency50 Hz
  • total connected loadca. 180 KVA

Equipment

  • Number of tool changers, Slots per tool changer, pcs.
