Purchase

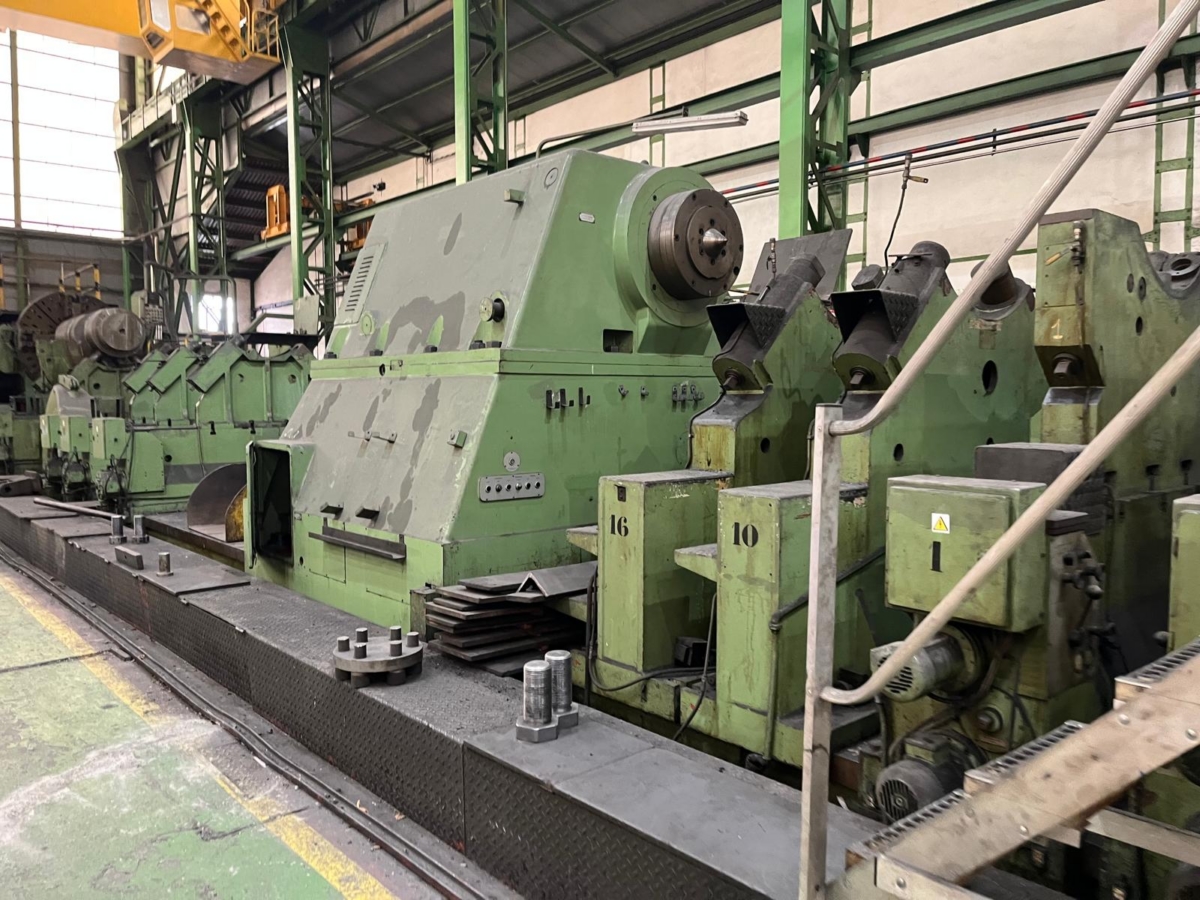

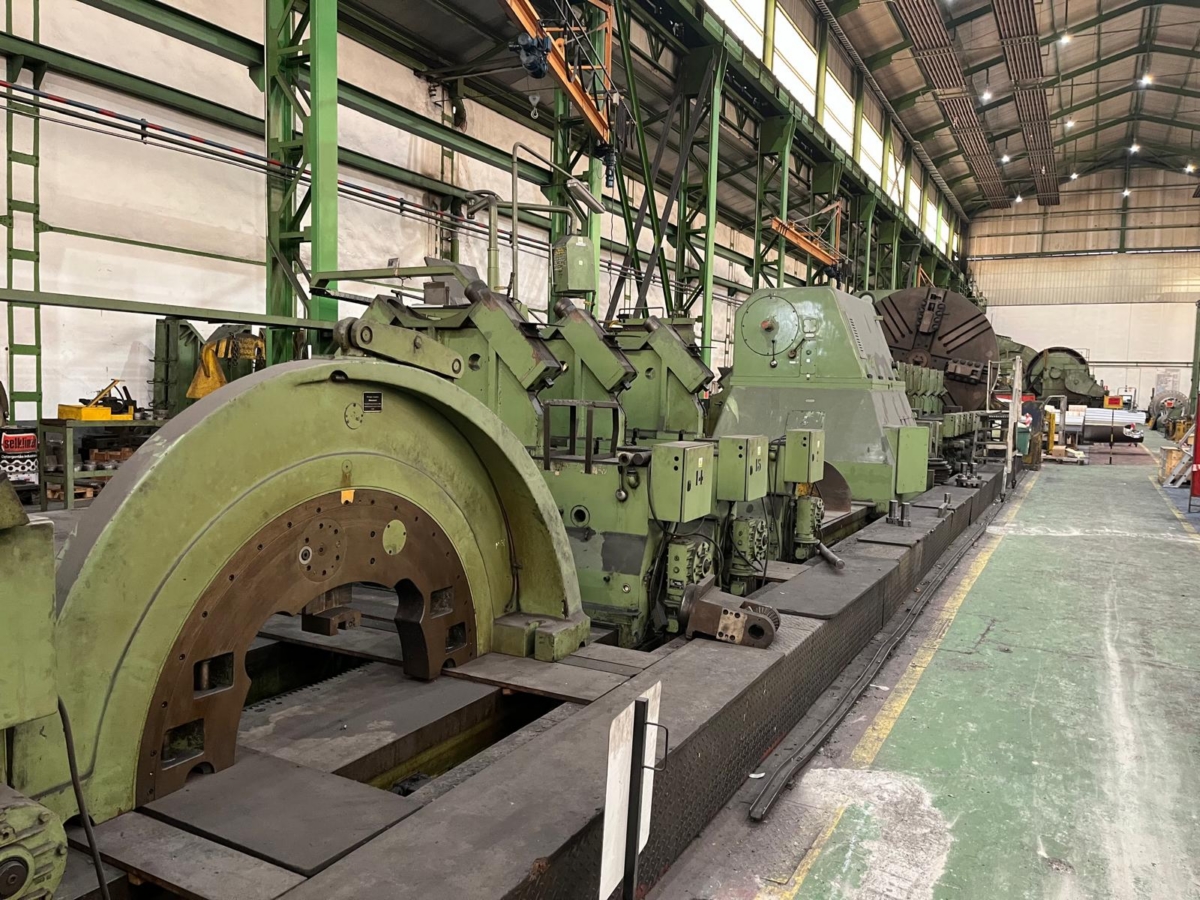

Crankshaft Turning Lathe

FRORIEP D 2100

D 2100
conventional
FRORIEP D 2100
FRORIEP D 2100
FRORIEP D 2100
FRORIEP D 2100
Previous
Next
FRORIEP D 2100
FRORIEP D 2100
FRORIEP D 2100
FRORIEP D 2100
Previous Prev
Next Next
Crankshaft Turning Lathe

FRORIEP D 2100

D 2100
conventional
Order now

Details

  • Number2086-766
  • ManufacturerFRORIEP
  • TypeD 2100
  • Controlconventional
  • Year1970
  • Delivery timeimmediately
  • Freight basisex Site
  • LocationSpain
  • OriginGermany

Technical details

  • center height over bed2.100 mm
  • centre distance15.000 mm
  • faceplate diameter3.500 mm
  • max. turning diameter over faceplate, rotatable3.120 mm
  • Max. diameter across the bed, rotatable4.150 mm
  • Max. diameter across the slide3.600 mm
  • max. workpiece weight between centres180 t
  • Bed width across the guides4.200 mm
  • bed height900 mm
  • Bed length including headstock22.400 mm
  • spindle diameter in front bearing700 mm
  • Tailstock quill diameter620 mm
  • SPINDLE SPEEDS AND FEEDS
  • turning speed range - faceplate0,15 - 40 min-1
  • Reduced speeds - I0,004 min-1
  • Reduced Speeds - II0,01 min-1
  • Number of spindle speed ranges4
  • feed steps4
  • longitudinal feed range0,3 - 300 mm/min
  • Feed range (threading / machining carriage)0,15 - 150 mm/min
  • MOVEMENTS
  • Rapid traverse of carriage1.600 mm/min
  • Cross-slide travel1.550 mm
  • Tool post travel400 mm
  • Tool post compartment height90 mm
  • Height of tool rest surface to axis90 mm
  • Width of top of cross-slide140 mm
  • DRIVE AND FORCES
  • engine output99 kW
  • spindle turning speed70 / 500 / 1.250 min-1
  • Rapid traverse motor power6 kW
  • Tailstock feed motor power7 kW
  • Spindle torque294.199 Nm
  • Max. rotational speed2,75 min-1
  • max. cutting force per carriage18.000 kg

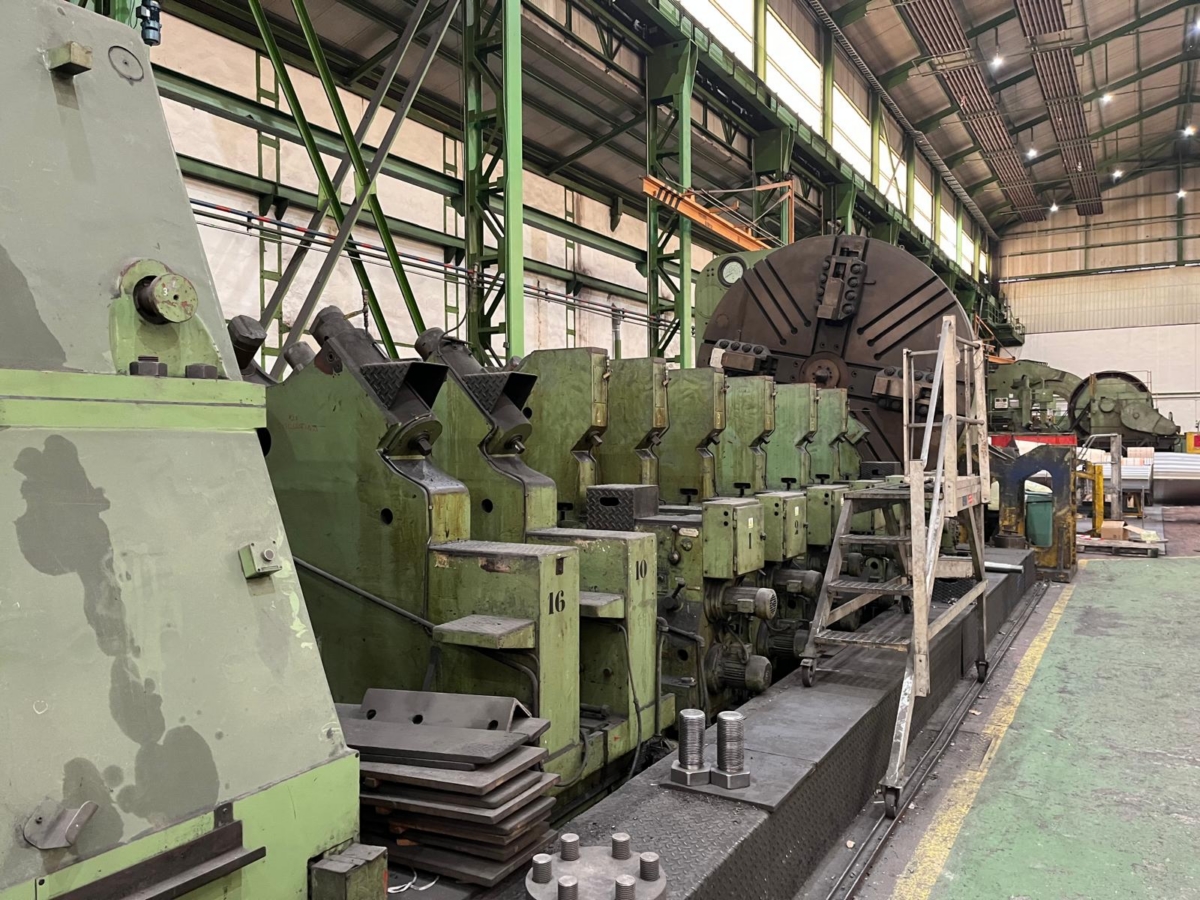

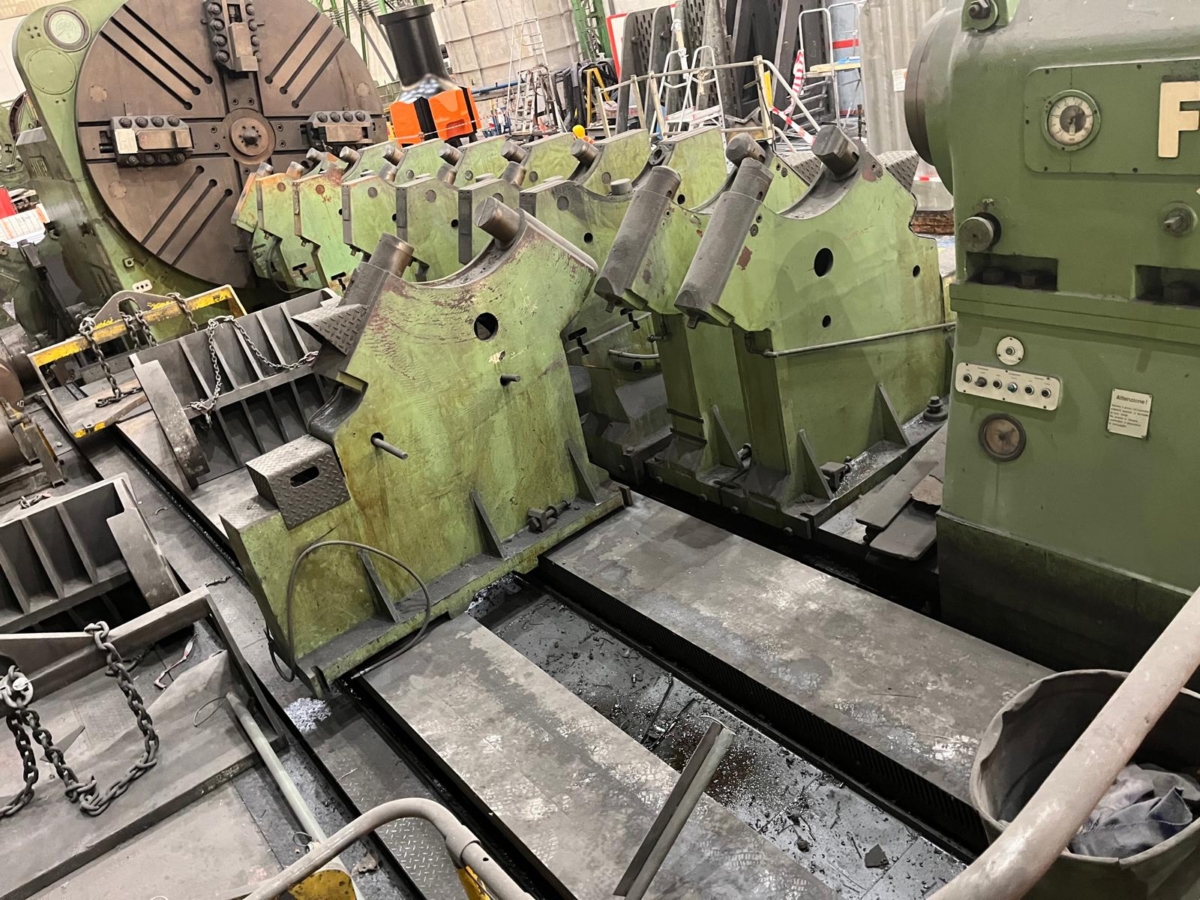

  • STEADY REST
  • workpiece diameter500 - 1.000 mm
  • steady rest width (up to Ø 3.240 mm)270 / 700 mm
  • Rapid traverse on bed1.100 mm/min
  • Distance to spindle axis580 mm
  • Max. load on quill (with central shoe)100 t
  • Max. travel in case of swinging motion5 mm
  • Lifting load with rolers25 t
  • diameter of quill200 mm

Equipment

  • Balancing Device, Crankpin Maching Unit

Description

Balancing Device
Electrical balancing via generator-brake system and compensation weights in the headstock.
Maximum balancing values per speed range:
I: 73.549 Nm
II: 27.948 Nm
III: 12.258 Nm
IV: 4.707 Nm
Device can be deactivated during normal turning operations.

Crankpin Machining Unit
This device is mounted on the support and allows:
Minimum distance between spindle axis and center of rotation ring: 700 mm
Maximum distance for crankpin machining: 1.000 mm
