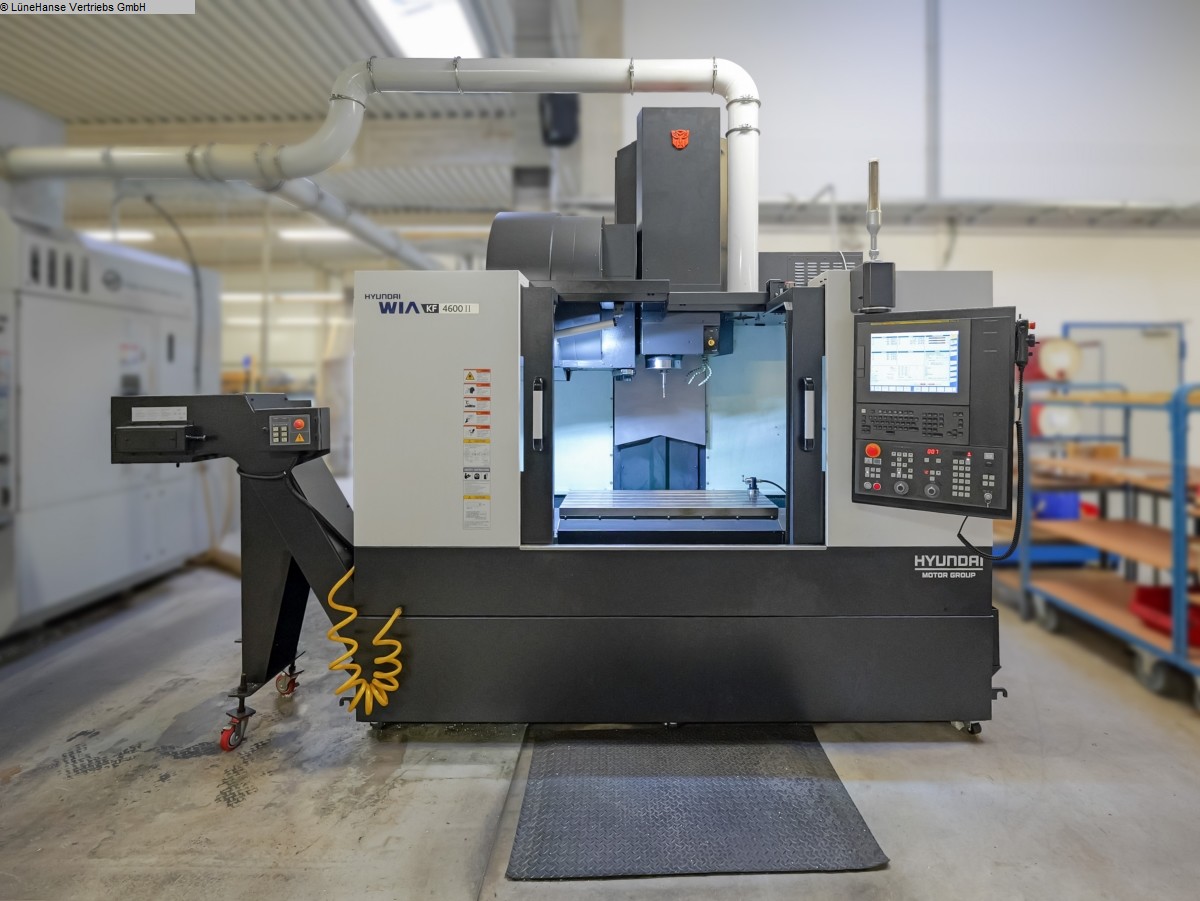

Machining Center - Vertical

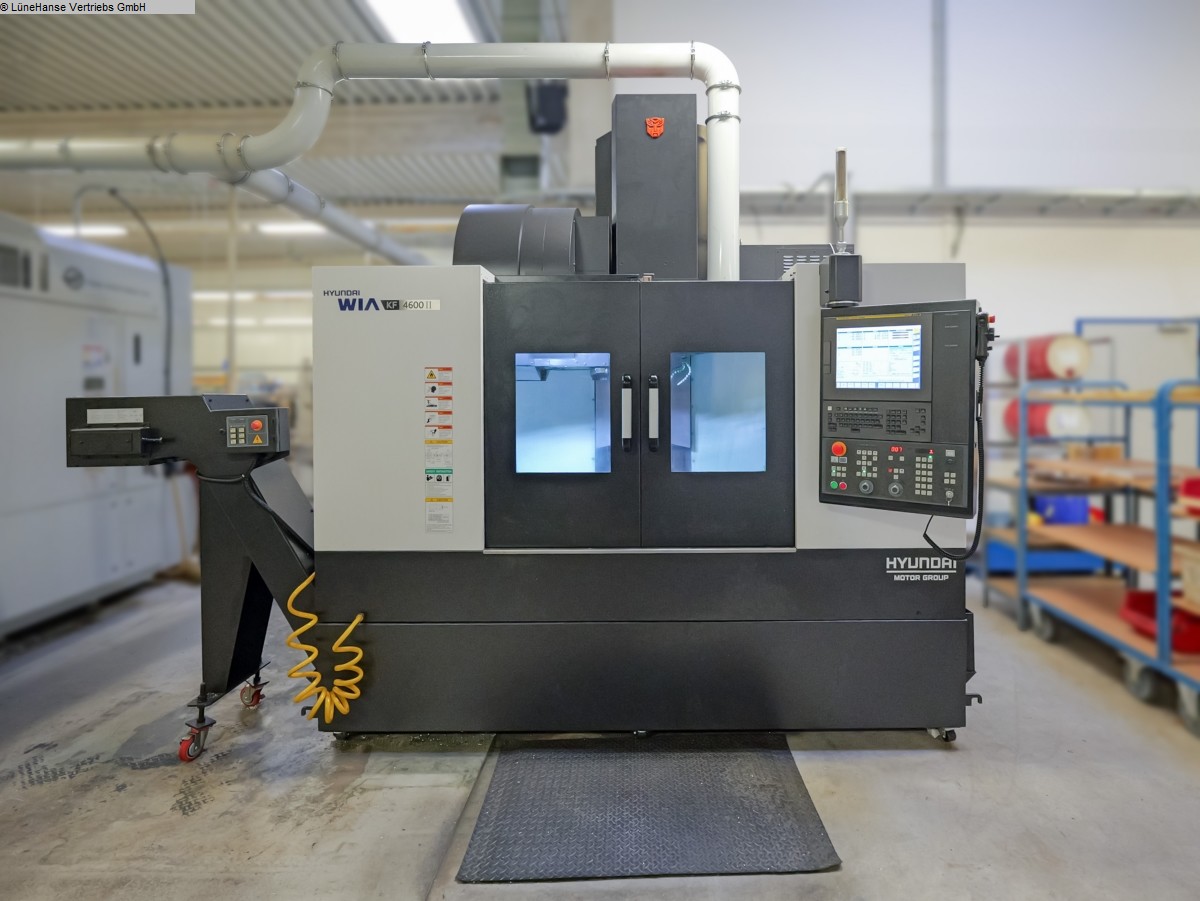

HYUNDAI WIA KF4600 II

WIA KF4600 II

CNC

Videos

Machining Center - Vertical

HYUNDAI WIA KF4600 II

WIA KF4600 II

CNC

Order now

Details

Number2086-753
ManufacturerHYUNDAI
TypeWIA KF4600 II
ControlCNC
Year2021
Delivery timeimmediately
Freight basisex Site
LocationHamburg
OriginKorea

Technical details

x-travel900 mm
y-travel460 mm
z-travel520 mm
controlFANUC 0i

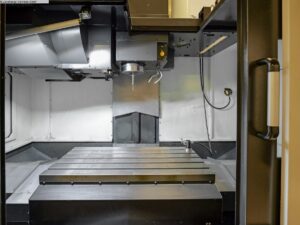

Table dimensions (LxW)1.050 x 459 mm
max. table load600 kg
rapid travel x/y/z36 / 36 / 36 m/min

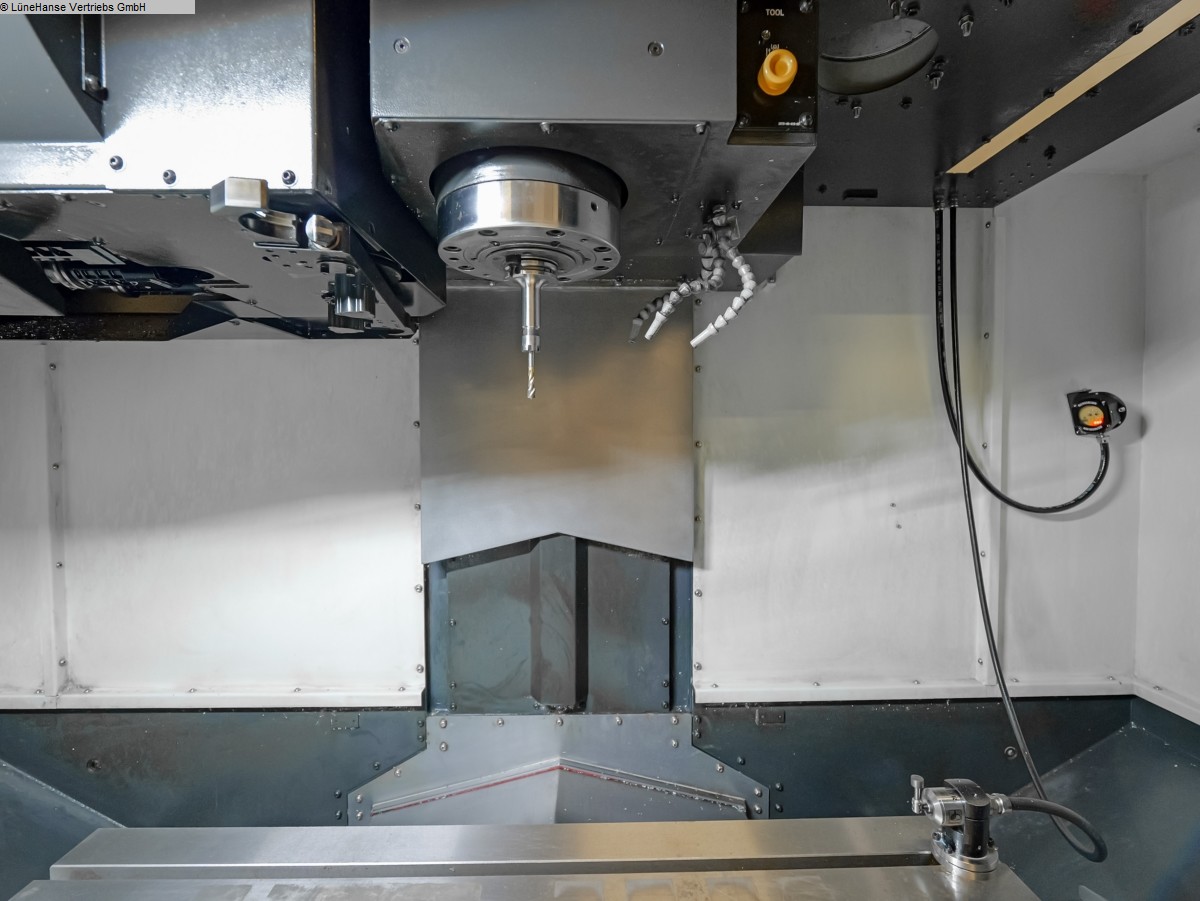

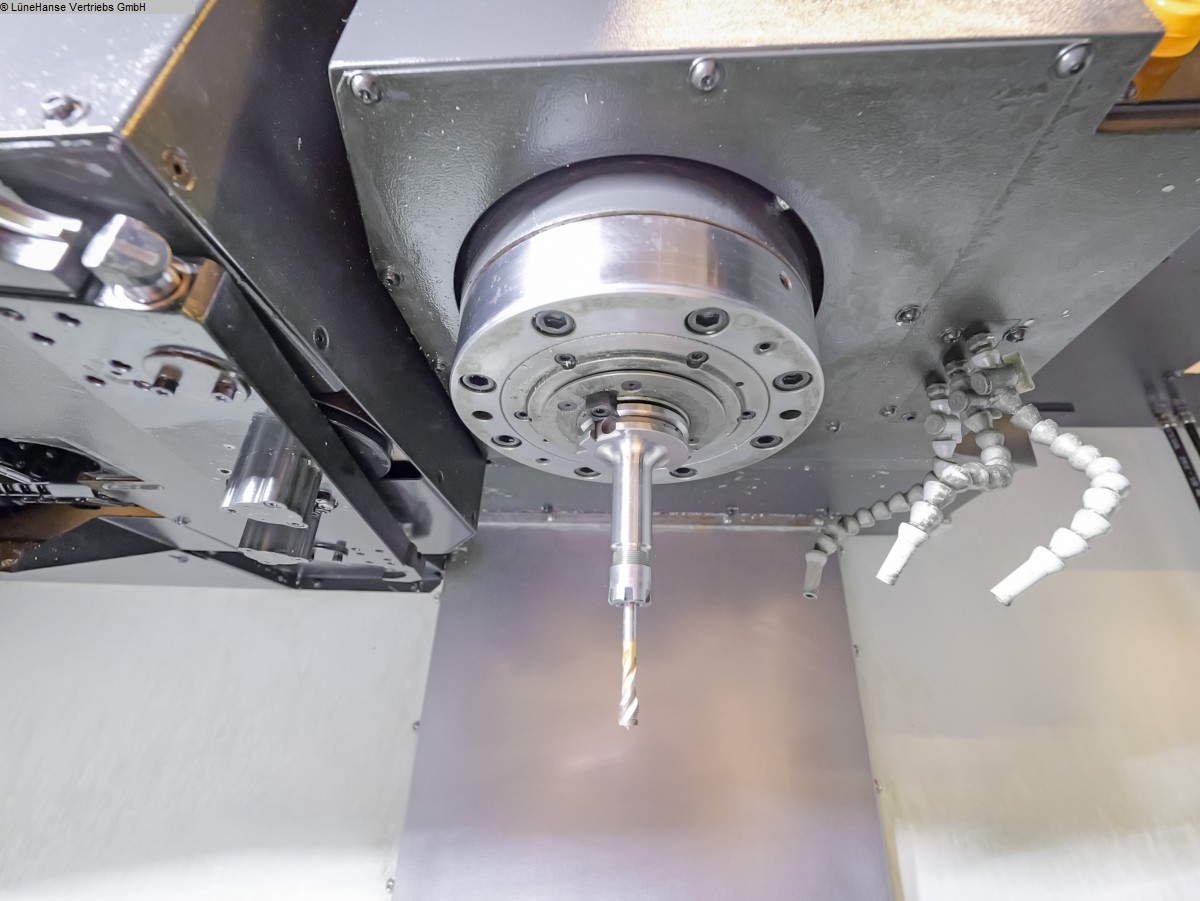

Spindle typeInline-Direct-Drive
spindle taperBT40
Max. spindle speed8.000 rpm
Torque286 Nm
drive capacity - spindle motor max. / const.15 / 11 kW
Dimensions of the machine (L x W x H)3.805 x 2.191 x 3.028 mm
weight of the machine ca.5.500 kg

Equipment

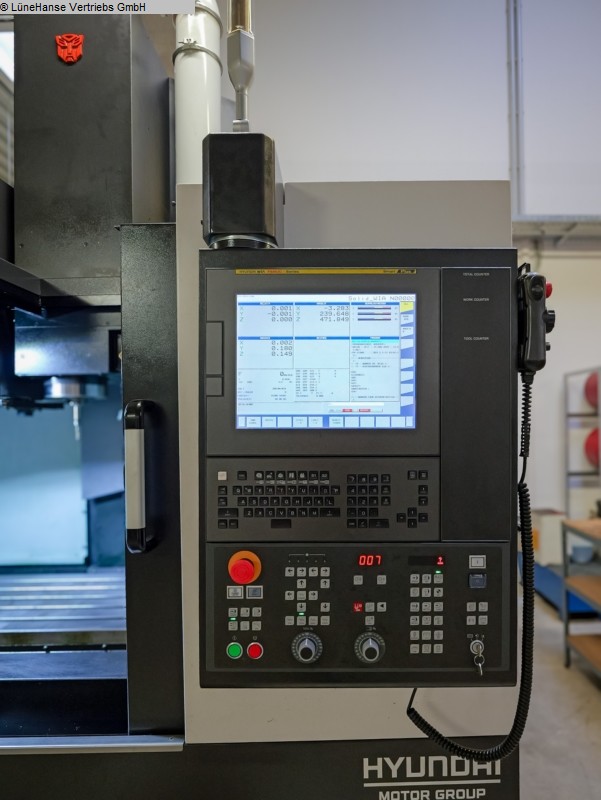

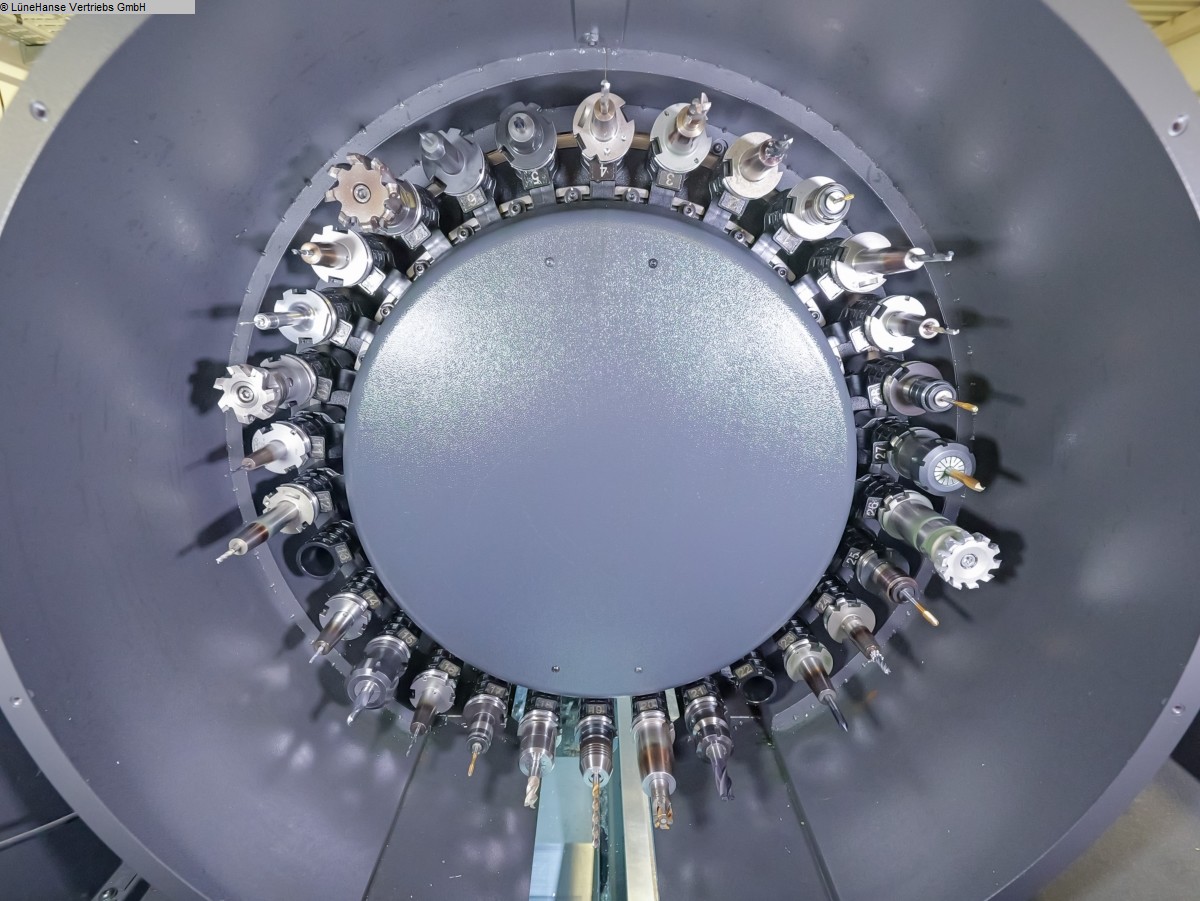

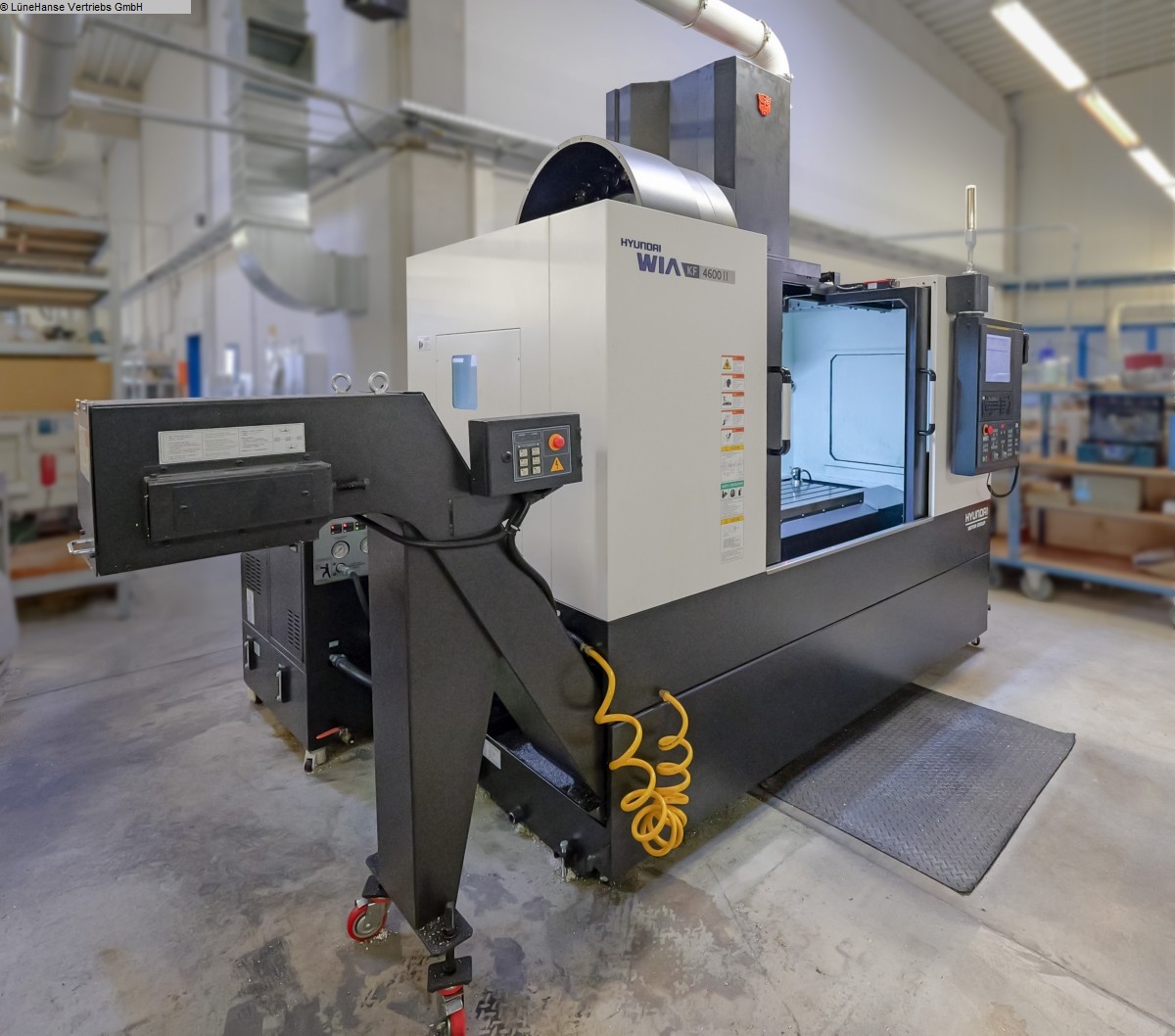

Side-mounted tool changer, Tool changer capacity, Control panel with 15'' touchscreen, Chip to Chip time, ca., Coolant tank capacity 400l, Cooling via spindle cooling, Hand-held spray gun with coolant, RENISHAW touch and spindle probe, RENISHAW GUI, External handwheel, Chip conveyor, left side, linear roller guide

Description

The previous owner is a reputable company in the field of CNC manufacturing technology. The company specializes in the production of custom-designed parts made of plastic, aluminum, and steel. Its customers also included companies from the medical technology and mechanical engineering sectors.

The machine has been well maintained and is in excellent condition. The operating hours were read on August 15, 2025, as follows: 1,830 hours.
