Purchase

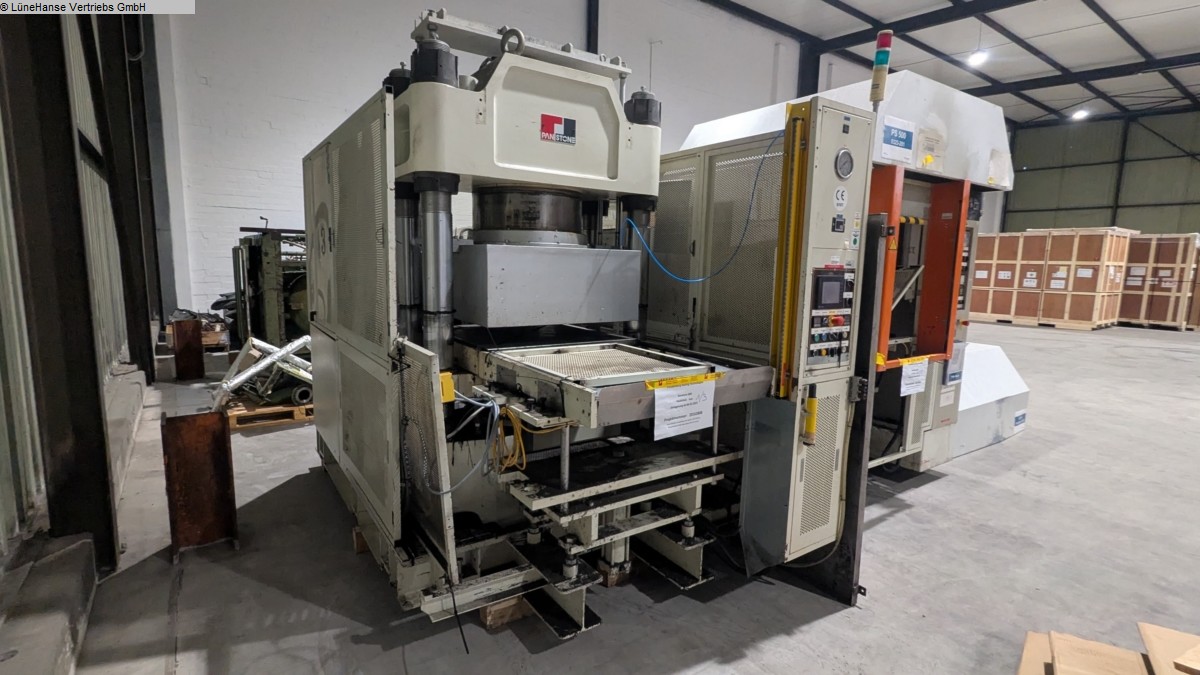

Vulcanizing press

PAN STONE P-V-500-3RT-PCD

P-V-500-3RT-PCD
Condition: excellent (used)
PAN STONE P-V-500-3RT-PCD
PAN STONE P-V-500-3RT-PCD
Previous
Next
PAN STONE P-V-500-3RT-PCD
PAN STONE P-V-500-3RT-PCD
Previous Prev
Next Next
Vulcanizing press

PAN STONE P-V-500-3RT-PCD

P-V-500-3RT-PCD
Condition: excellent (used)
Order now

Details

  • Number2086-718
  • ManufacturerPAN STONE
  • TypeP-V-500-3RT-PCD
  • Controlother
  • Year2005
  • Delivery timeimmediately
  • Freight basisex Site
  • LocationHamburg
  • OriginTaiwan

Technical details

  • closing pressure4900 kN
  • operating pressure206 bar
  • Heating plate dimensions700 x 700 mm
  • diameter of piston558,8 mm
  • max. stroke250 mm
  • daylight300 mm
  • max. mass of heating plant560 kg
  • Capacity of oil tank1100 l
  • Rated capacity82 kW
  • Heating capacity56 kW
  • Engine output, vacuum motor4 kW
  • Stroke of vacuum cover200 mm
  • dimensions3975 x 2935 x 2555 mm

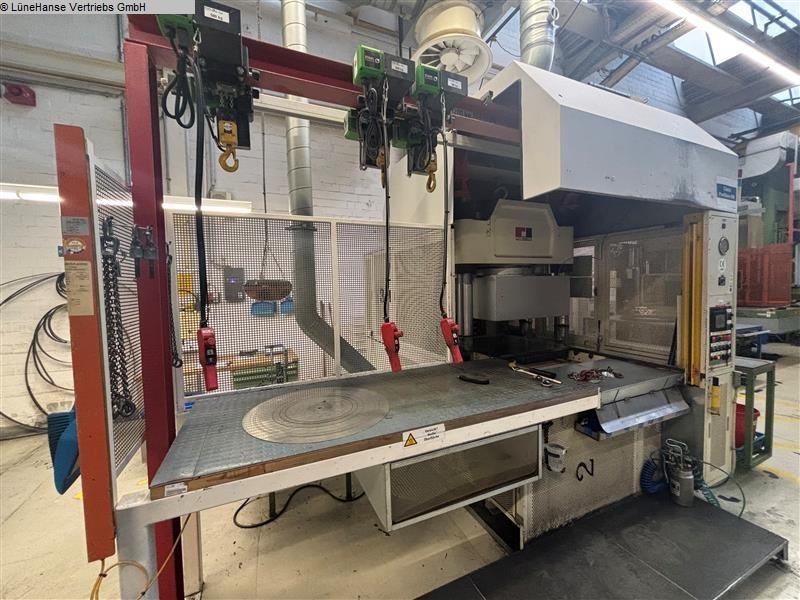

  • Crane runway (monorail) with three chain hoists
  • ProducerSTAHL
  • Year2011
  • Lifting capacity3 x 400 kg
  • Length of crane runwayca 3500 mm
  • ROLLING CHASSIS
  • Lifting capacity400 kg
  • Lifting height3000 mm
  • Stroke speed - main stroke4 m/min
  • Stroke speed - fine stroke1 m/min
  • Main stroke0,3 kW
  • Fine stroke0,07 kW
  • Chain length6,7 m
  • Connected load frequency400 V
  • Controlling equipmentSTH 6102-009

Description

The vulcanizing press from manufacturer PAN STONE, was used by a renowned
German company specializing in sealing technology and electromobility. This
company is known for its high quality and innovation in seal production.
It was always professionally maintained and repaired, which explains its
excellent condition. This press offers you the opportunity to invest in proven
technology that was utilized by a leading company in Germany
