Heavy Duty Lathe

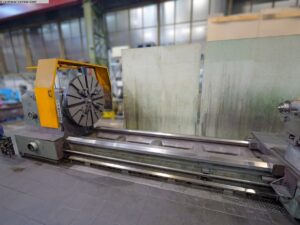

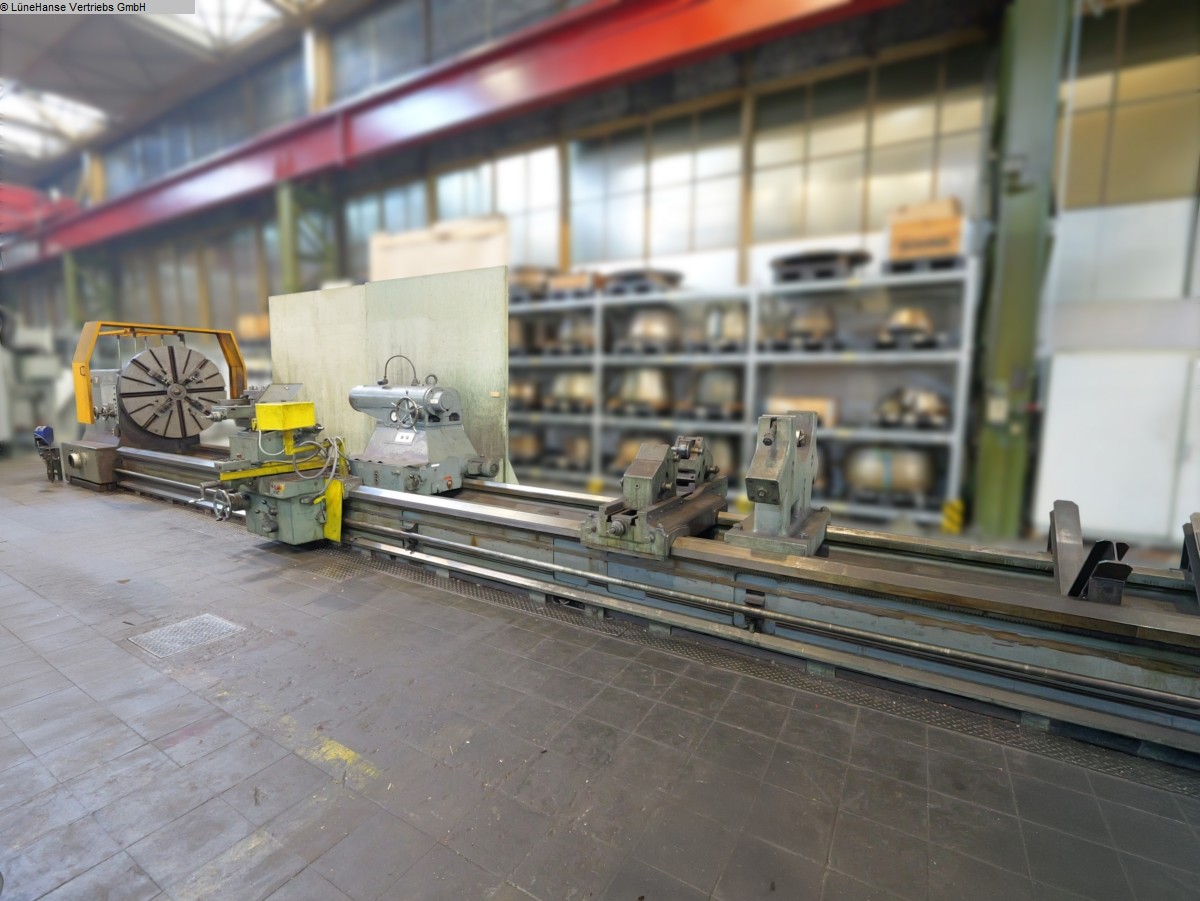

VDF-WOHLENBERG VM 1600

VM 1600
conventional
Sold

This machine has already been sold. Please contact us for similar machines.

Details

  • Number2086-767
  • ManufacturerVDF-WOHLENBERG
  • TypeVM 1600
  • Controlconventional
  • Year1972
  • Delivery timeimmediately
  • Freight basisex Site
  • LocationOsnabrück
  • OriginGermany

Technical details

  • turning diameter over bed1.650 mm
  • turning diameter over slide rest1.350 mm
  • turning length10.000 mm
  • greates pass round over bed1.580 mm
  • center height over square guideway825 mm
  • bed length13.350 mm
  • bed width1.120 mm
  • turning speed range1,4 - 280 min-1
  • max. torque, approx.20.000 Nm
  • spindle diameter in front bearing260 mm
  • spindle bore82 mm

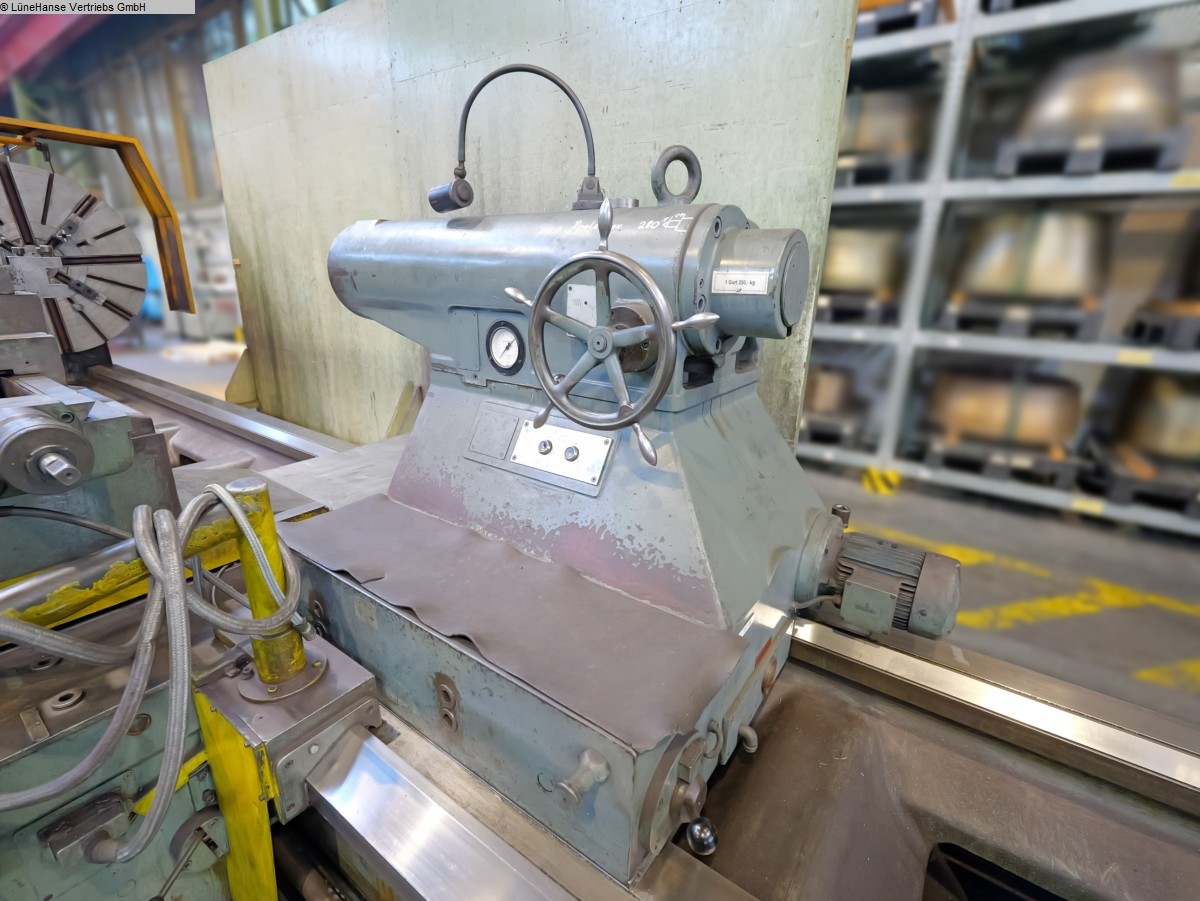

  • Tailstock quill tape1:10; No. 100
  • upper head travel500 mm
  • Diameter of the tailstock quill200 mm
  • Travel of the quill280 mm
  • max. workpiece weight between centres10.000 kg
  • With 1 steady rest12.500 kg

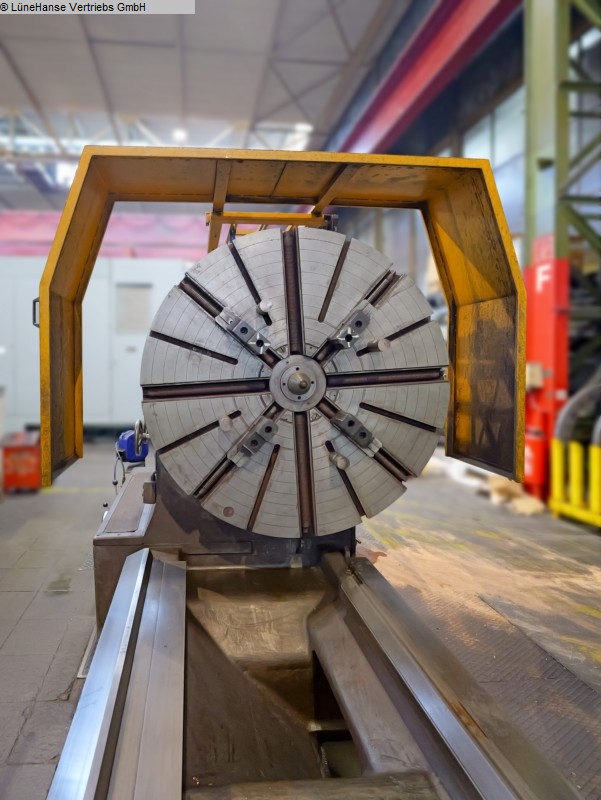

  • flying in the faceplate at 280 mm point dist.3.550 kg
  • weight of the machine approx.25.500 kg

Equipment

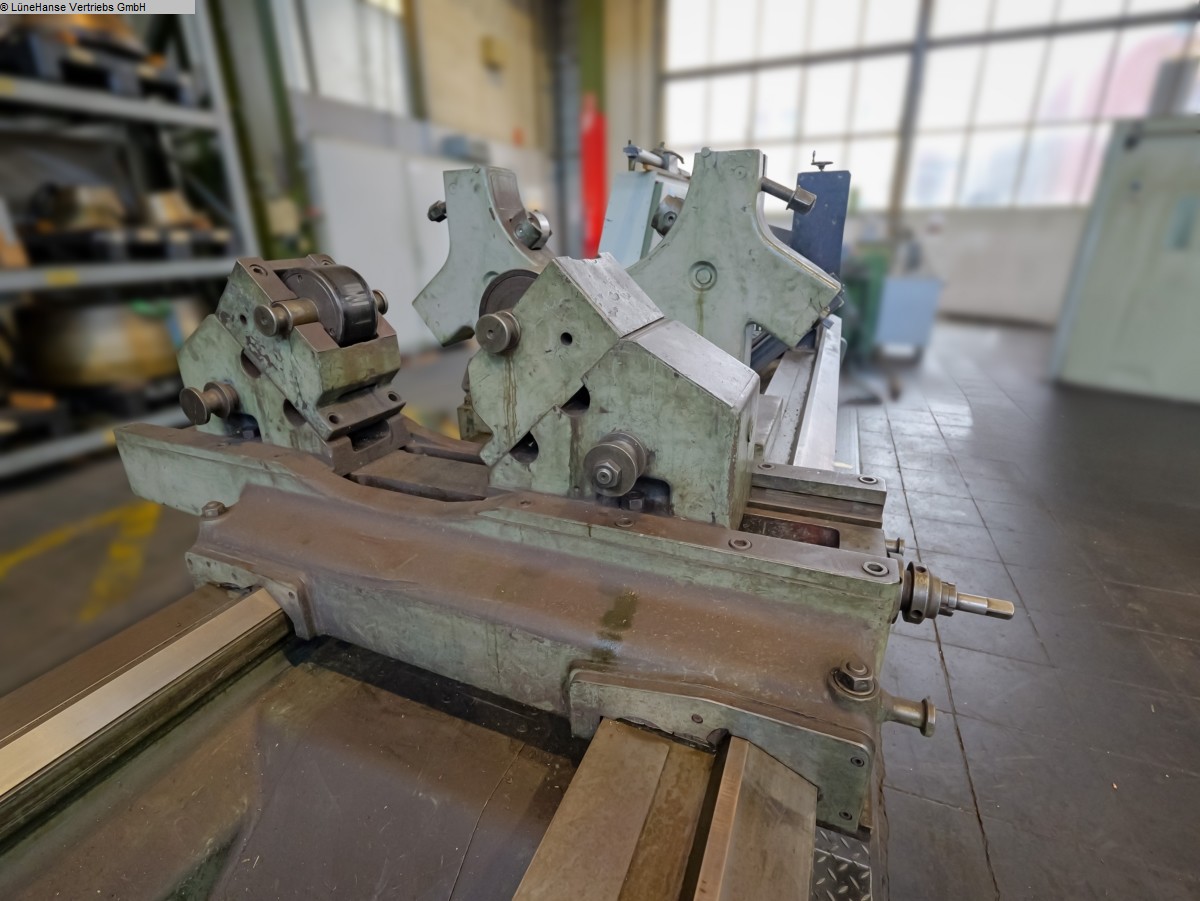

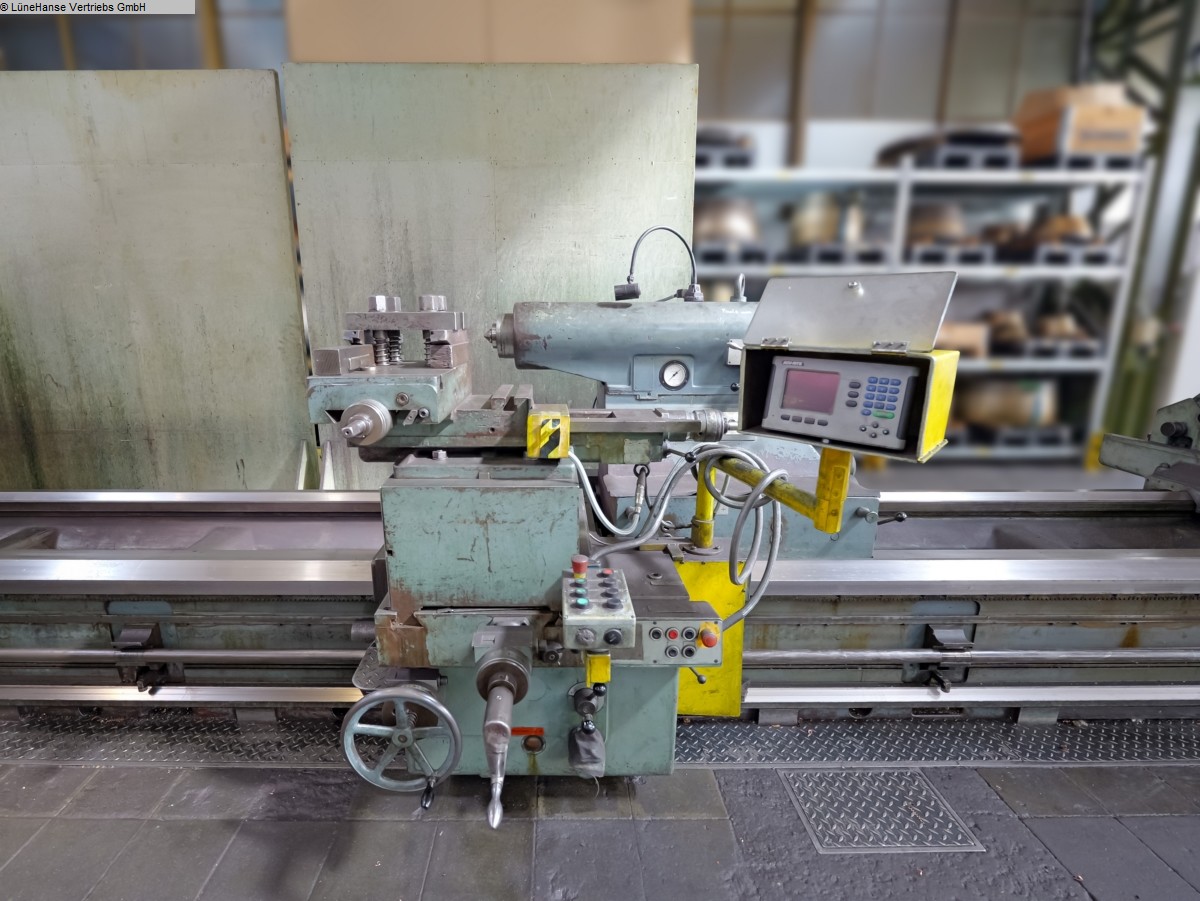

  • 3-axis digital display, 1 pc. steady rest, 1 pc. roller steady rest, Chip conveyor, Chuck guard, Feed safety

Description

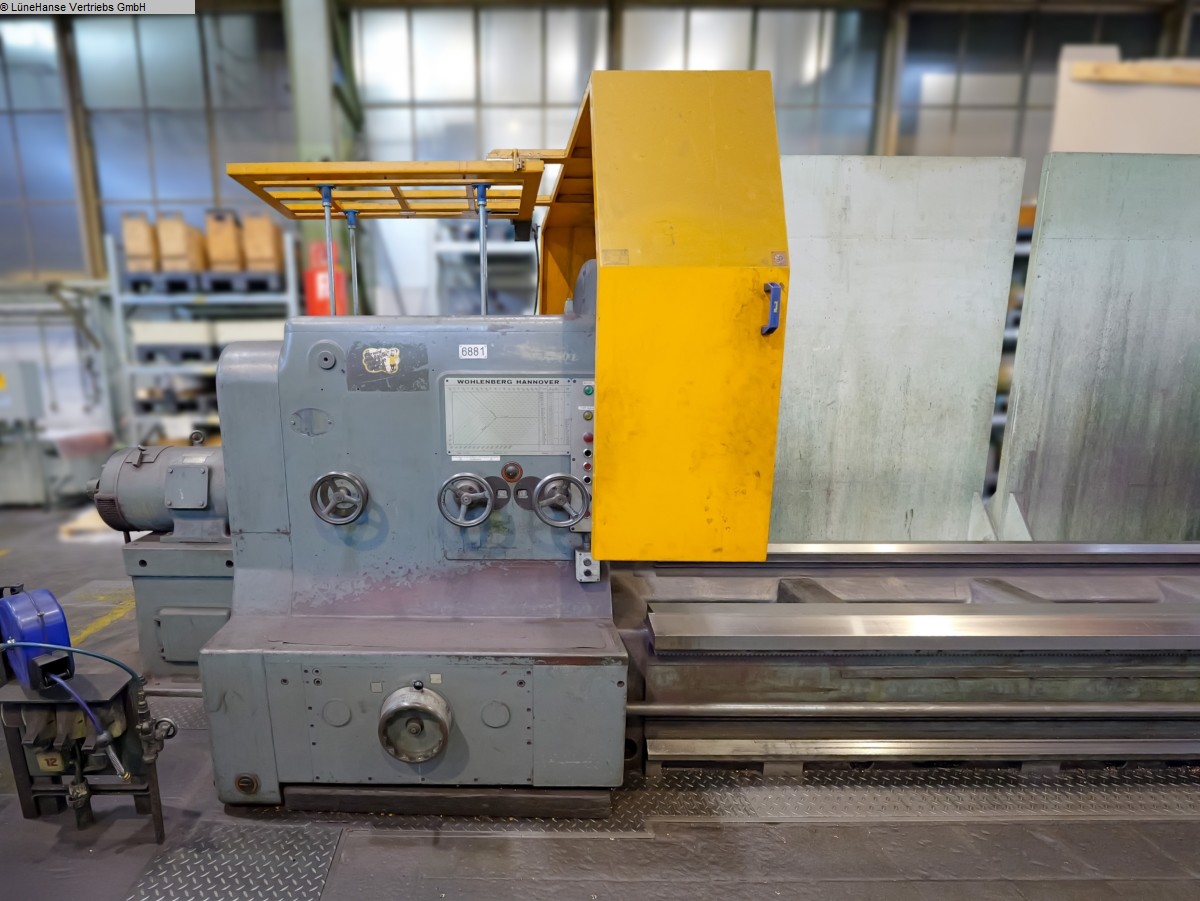

The machine is a first-hand machine, is free of defects, and is in very good condition. In 2023, the spindlestock has been overhauled; among other things, the main spindle bearings were replaced, and the main spindle were chrome-plated and the bottom wheel (bearing seat)has been reworked. The guideways are also in very good condition, considering their age.
