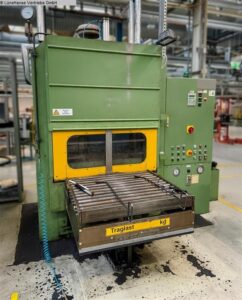

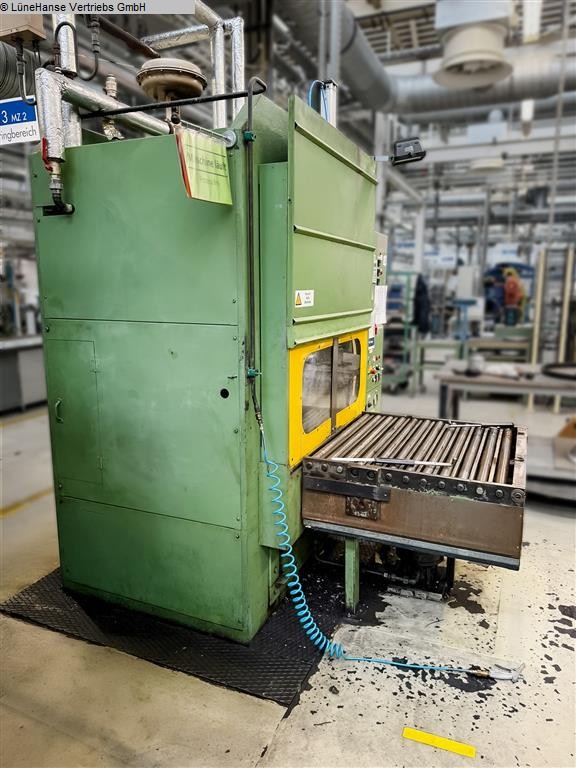

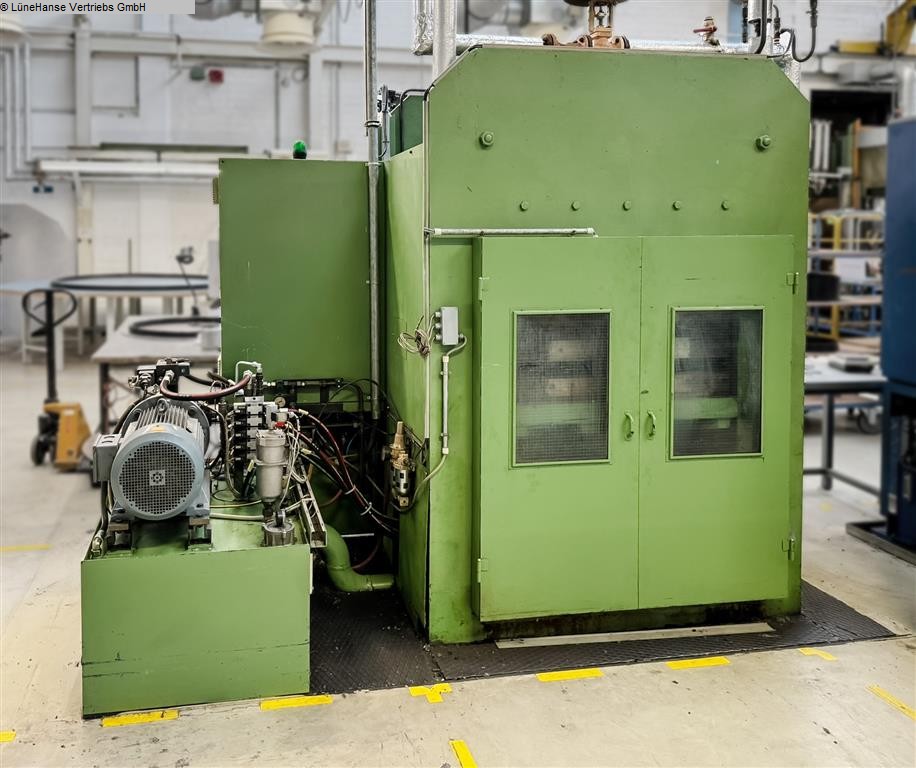

Vulcanizing press

WICKERT 1000

1000
other
WICKERT 1000
WICKERT 1000
WICKERT 1000
WICKERT 1000
WICKERT 1000
WICKERT 1000
Previous
Next
WICKERT 1000
WICKERT 1000
WICKERT 1000
WICKERT 1000
WICKERT 1000
WICKERT 1000
Previous Prev
Next Next
Videos
Video
prev Prev
Next next
Vulcanizing press

WICKERT 1000

1000
other
Order now

Details

  • Number2086-706
  • ManufacturerWICKERT
  • Type1000
  • Controlother
  • Year1997
  • Delivery timeimmediately
  • Freight basisex Site
  • LocationHamburg
  • OriginGermany

Technical details

  • closing pressure7.000 kN
  • operating pressure250 bar
  • Heating plate dimensions1.000 x 1.050 mm
  • controlSIEMENS CORO OP 5
  • CLAMPING UNIT-
  • Specific pressure610 N/cm²
  • Number of daylights2 St.
  • Insert height 75mm heating plate, 20mm insulatingca. 2 x 190 mm
  • piston stroke400 mm
  • diameter of piston, piston 1543 mm
  • diameter of piston, piston 260/40 mm
  • clamping force - rapid traverse2 x 85 kN
  • Return capacity2 x 47 kN
  • total wight16 t

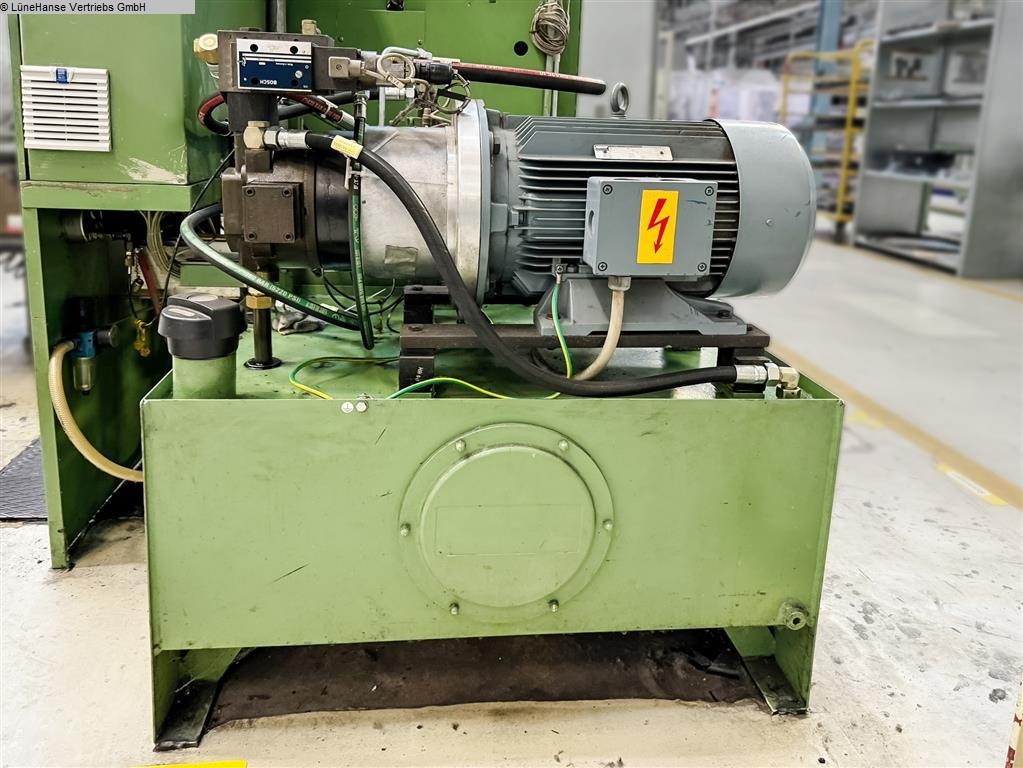

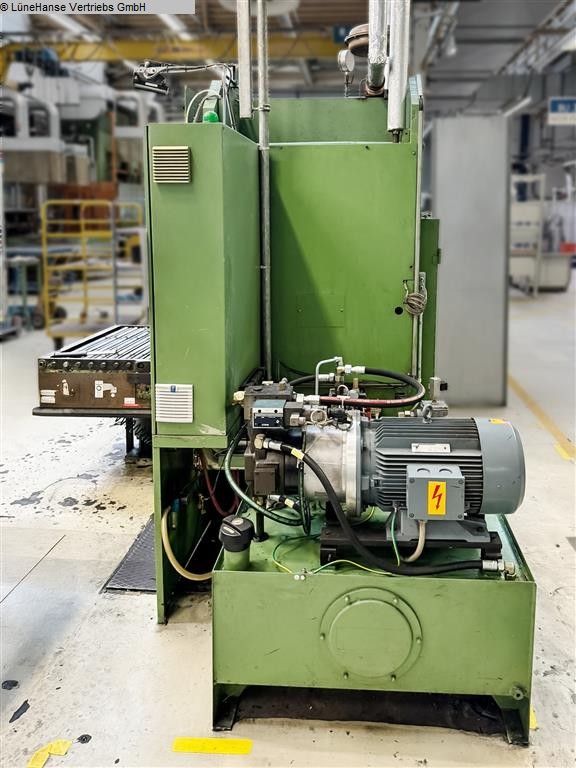

  • HYDRAULICS
  • power capacity22 kW
  • Pressure adjustment40 - 300 bar
  • Flow rate control0 - 99
  • %Delivery capacity (HD), against 300 bar45 l/min
  • Tank dimensions (LxWxH)1.000 x 770 x 535 mm
  • CLOSING SPEED
  • rapid traverse40 - 50 mm/s
  • rapid- and creep travel0 - 20 mm/s
  • pressing speed0 - 3 mm/sec
  • Slow opening0 - 20 mm/s
  • Opening, rapid traverse0 - 60 mm/s
  • Working noise65 dB (A)

Description

The steam-heated vulcanizing press WICKERT 1000 was used by a renowned German company specialized in sealing technology and electromobility. This company is known for its high quality and innovation in the production of seals. The machine was part of a production line responsible for manufacturing high-performance seals used in various industries. It was consistently maintained and professionally serviced, which explains its excellent condition.
