CNC Drehmaschine

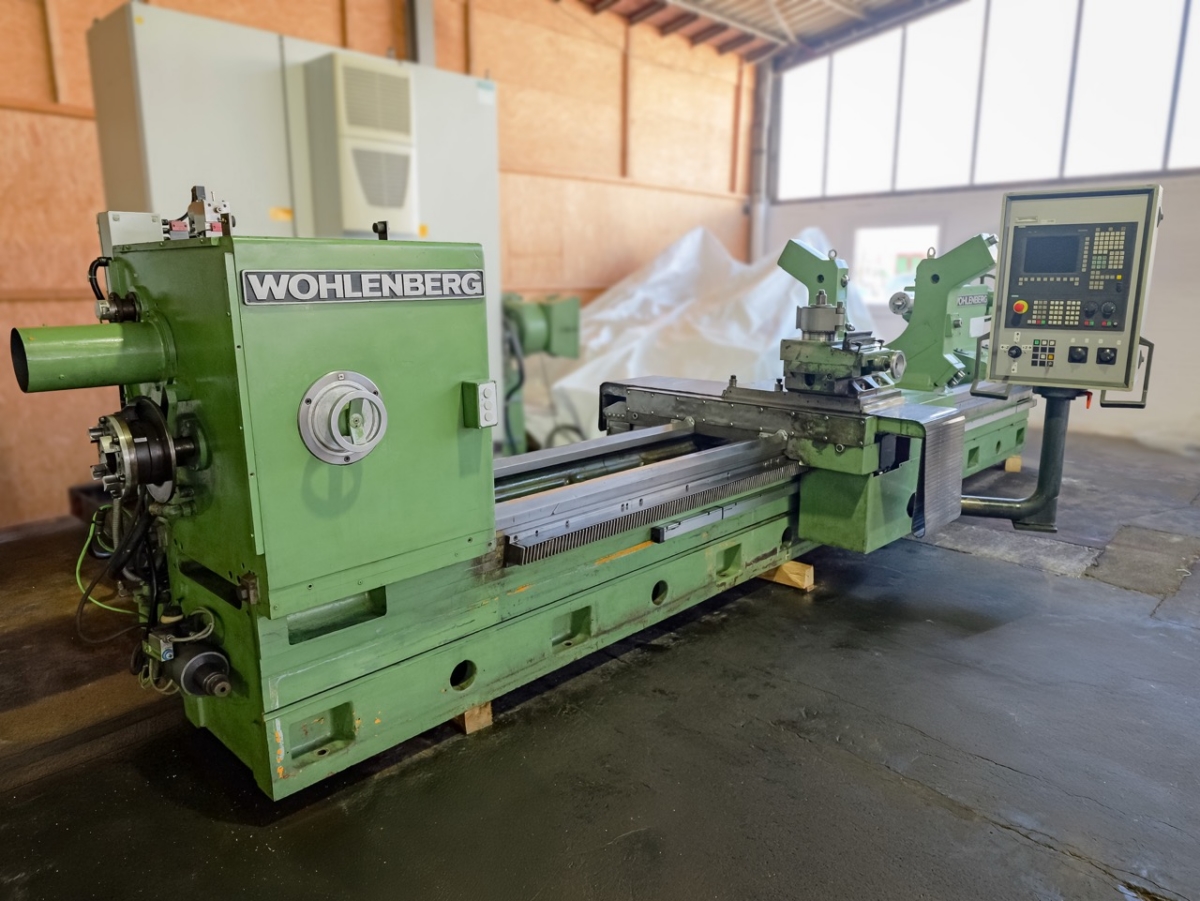

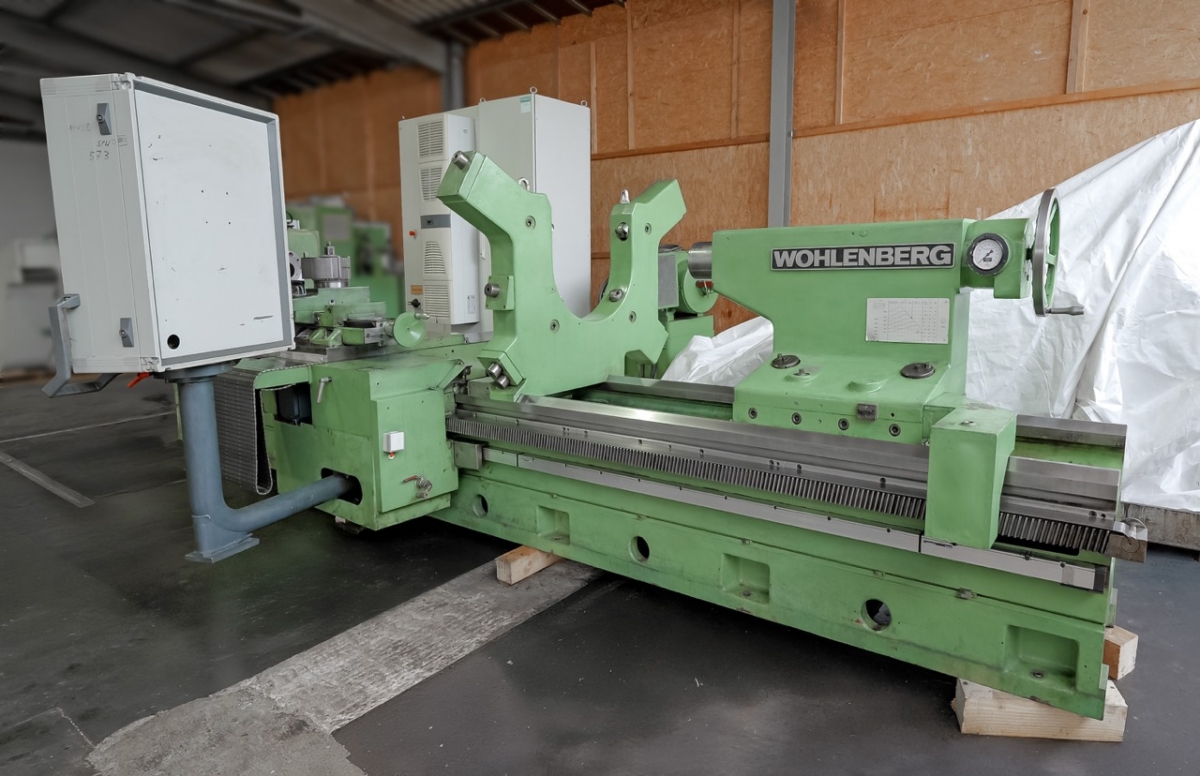

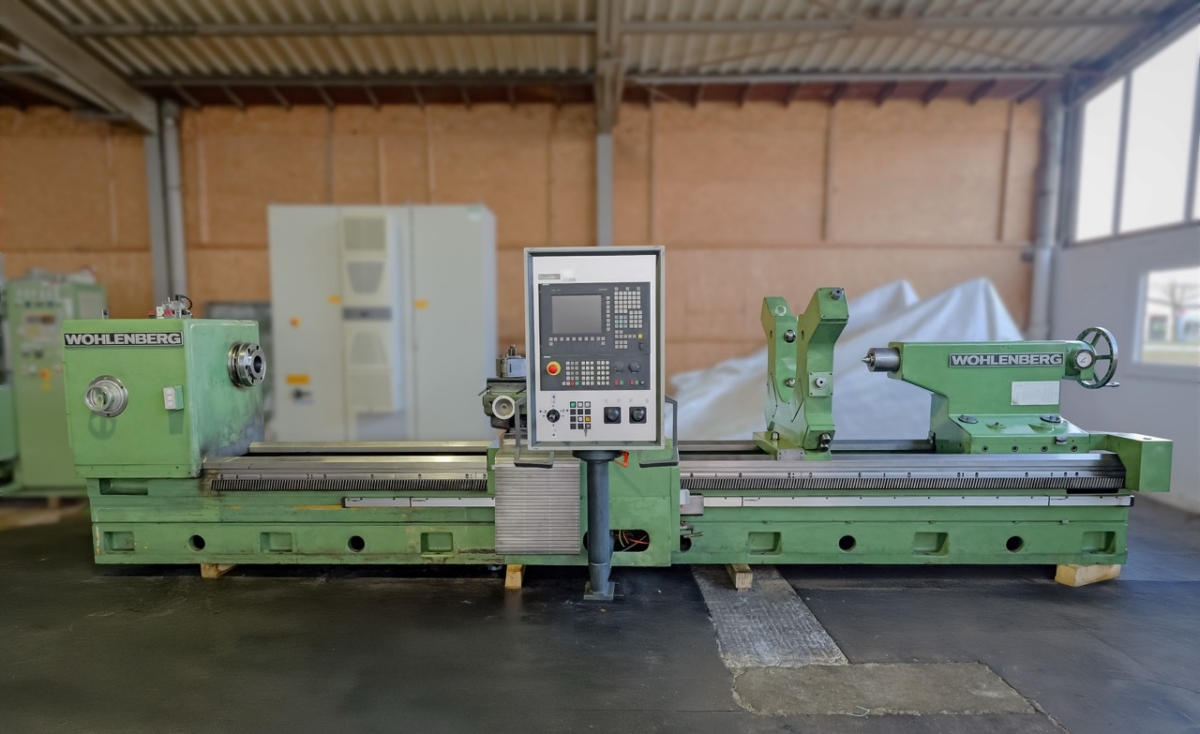

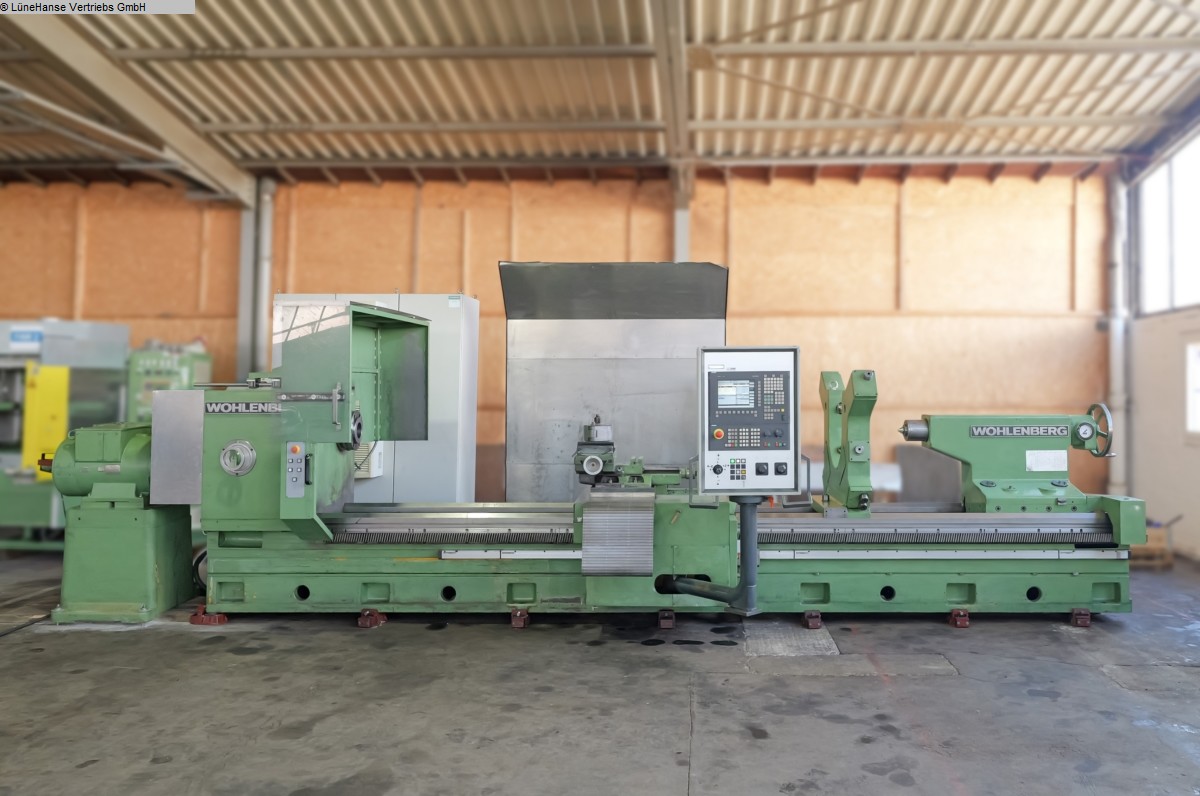

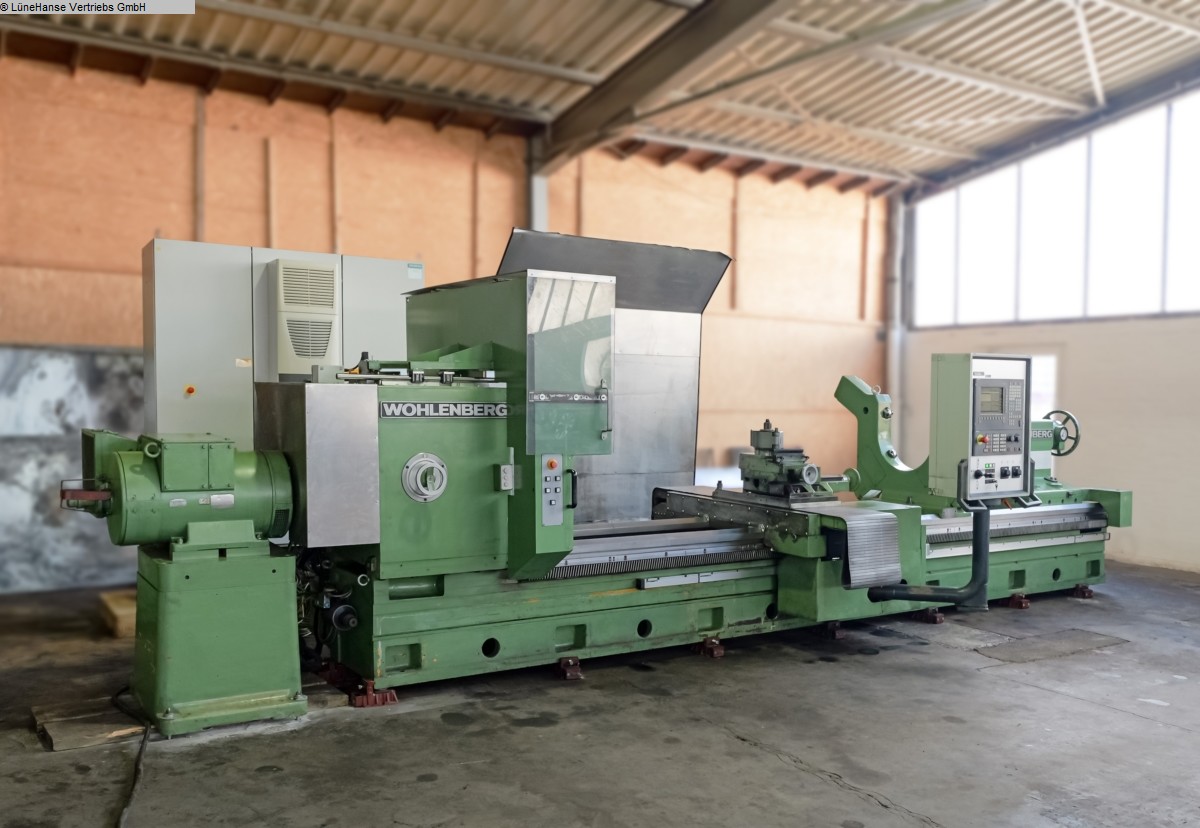

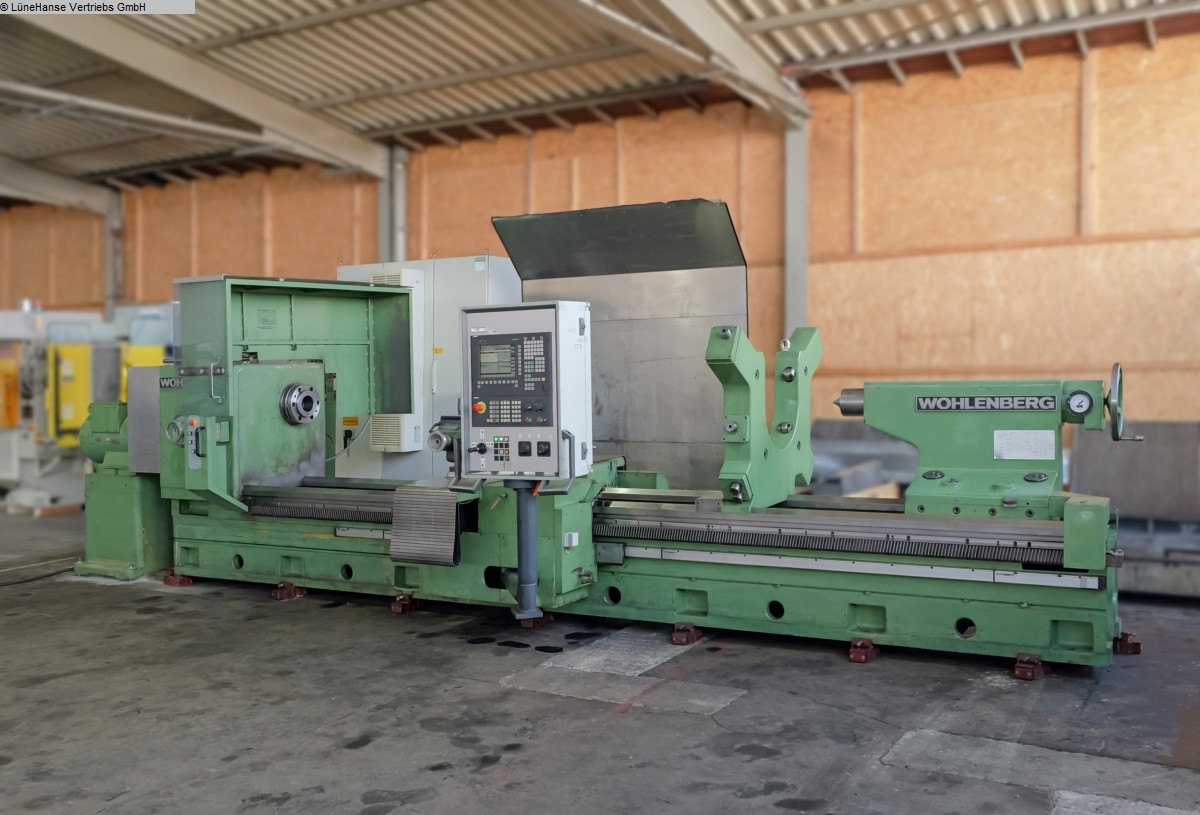

WOHLENBERG U1070S

U1070S
CNC
Anfragen

Angebotsdetails

  • Lagernummer2086-759
  • HerstellerWOHLENBERG
  • TypU1070S
  • SteuerungCNC
  • Baujahr1983 / 2007
  • Delivery timeimmediately
  • Freight basisex Warehouse
  • LocationLüneburg
  • OriginGermany

Technische Details

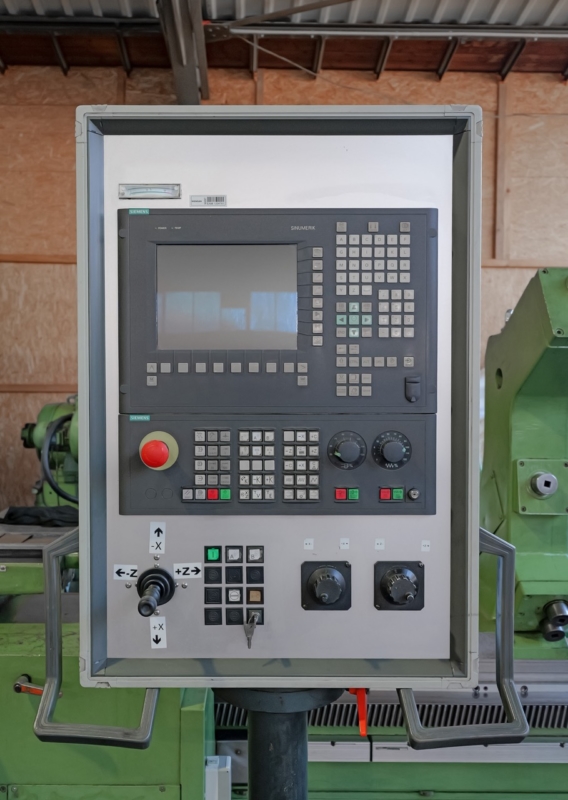

  • controlSIEMENS840D PL ManualTurn
  • turning diameter1.140 mm
  • turning length4.200 mm
  • turning diameter over slide800 mm
  • faceplate diameter max.1.000 mm

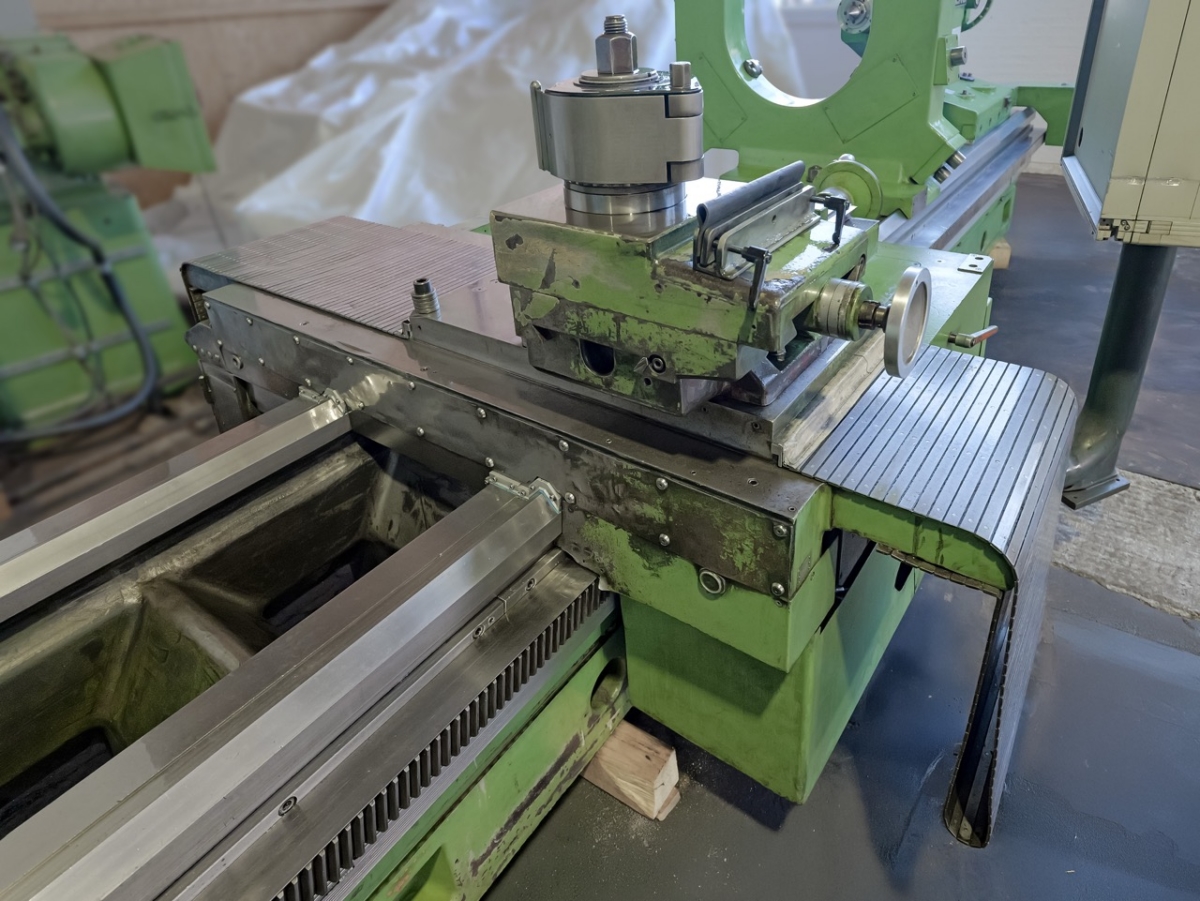

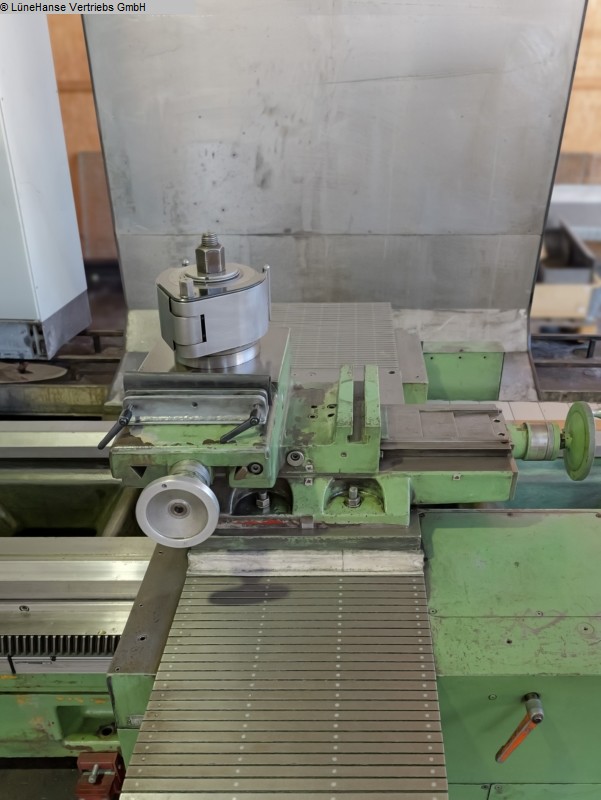

  • SUPPORT
  • Length of the bed slide1.000 mm
  • Travel of the cross slide650 mm
  • Width of the cross lide425 mm

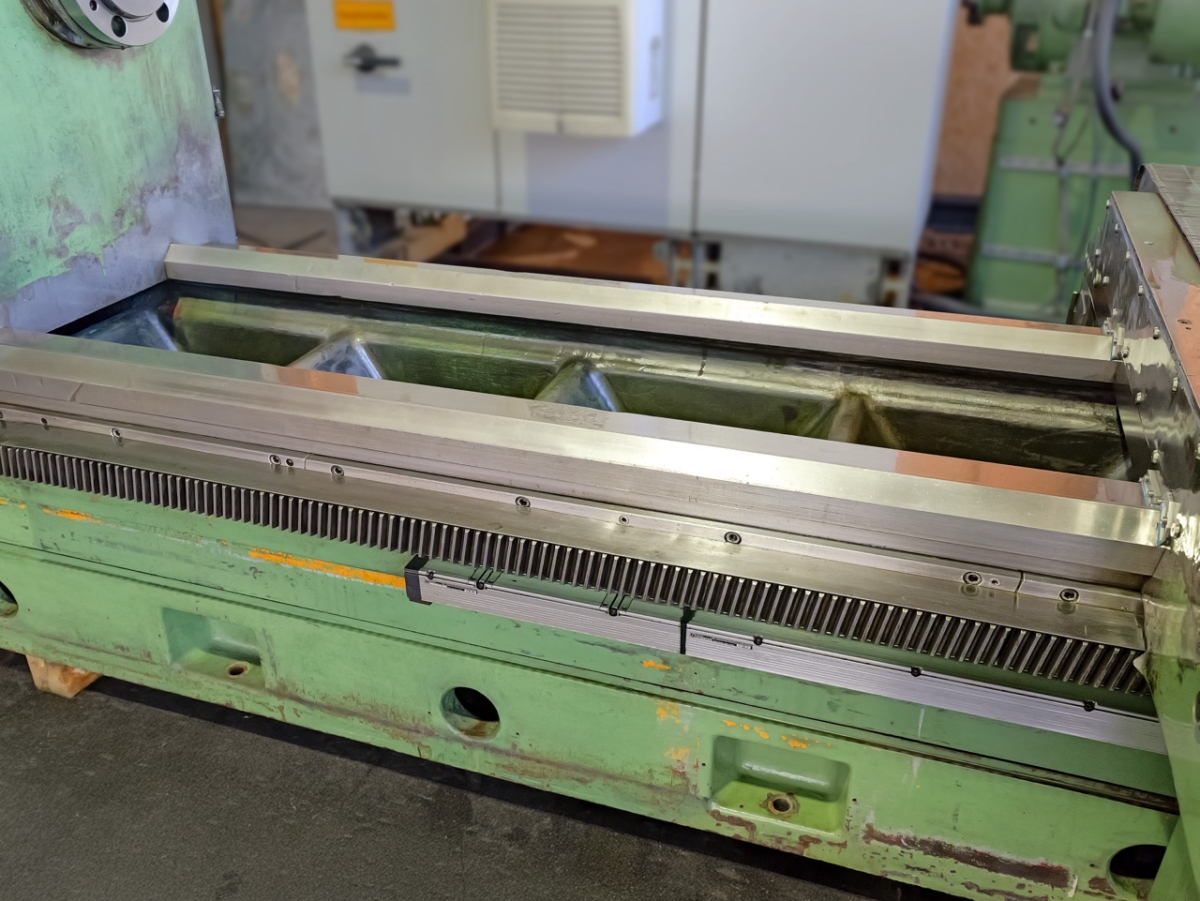

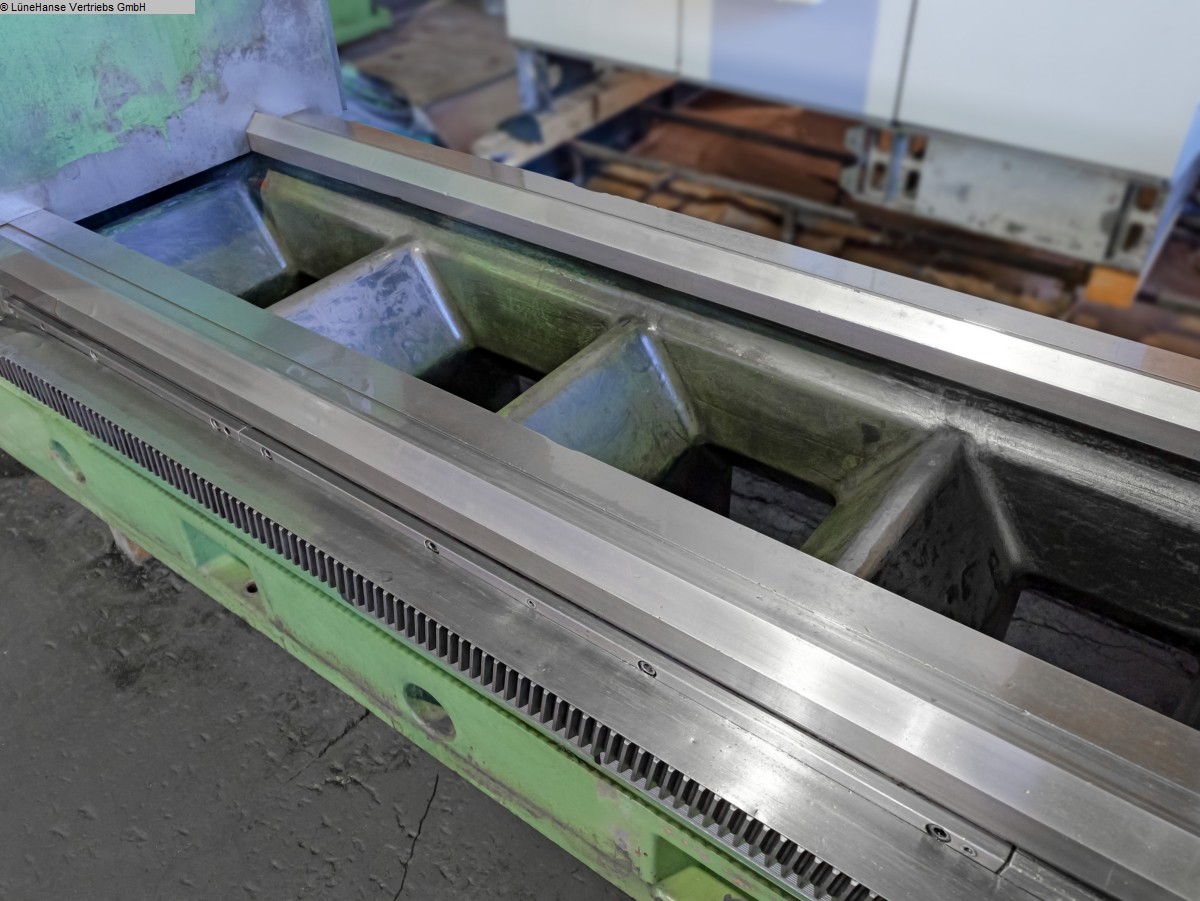

  • bed width710 mm

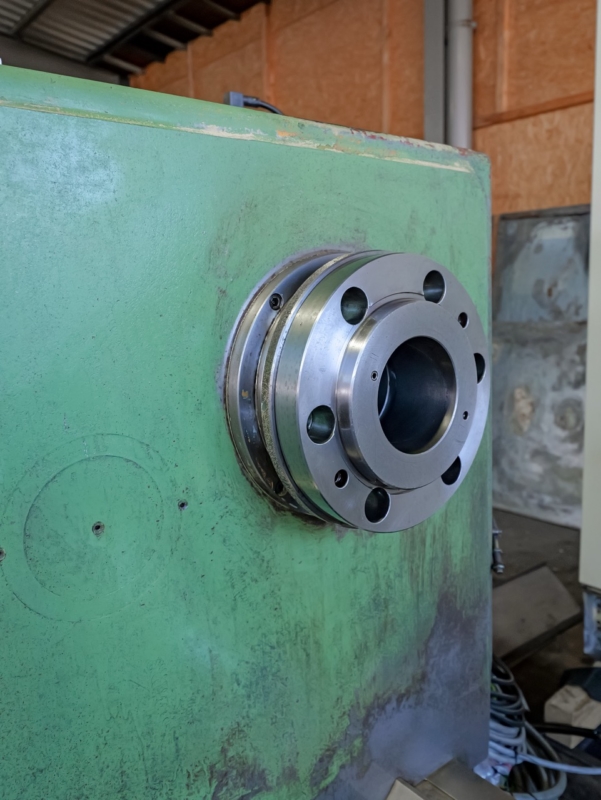

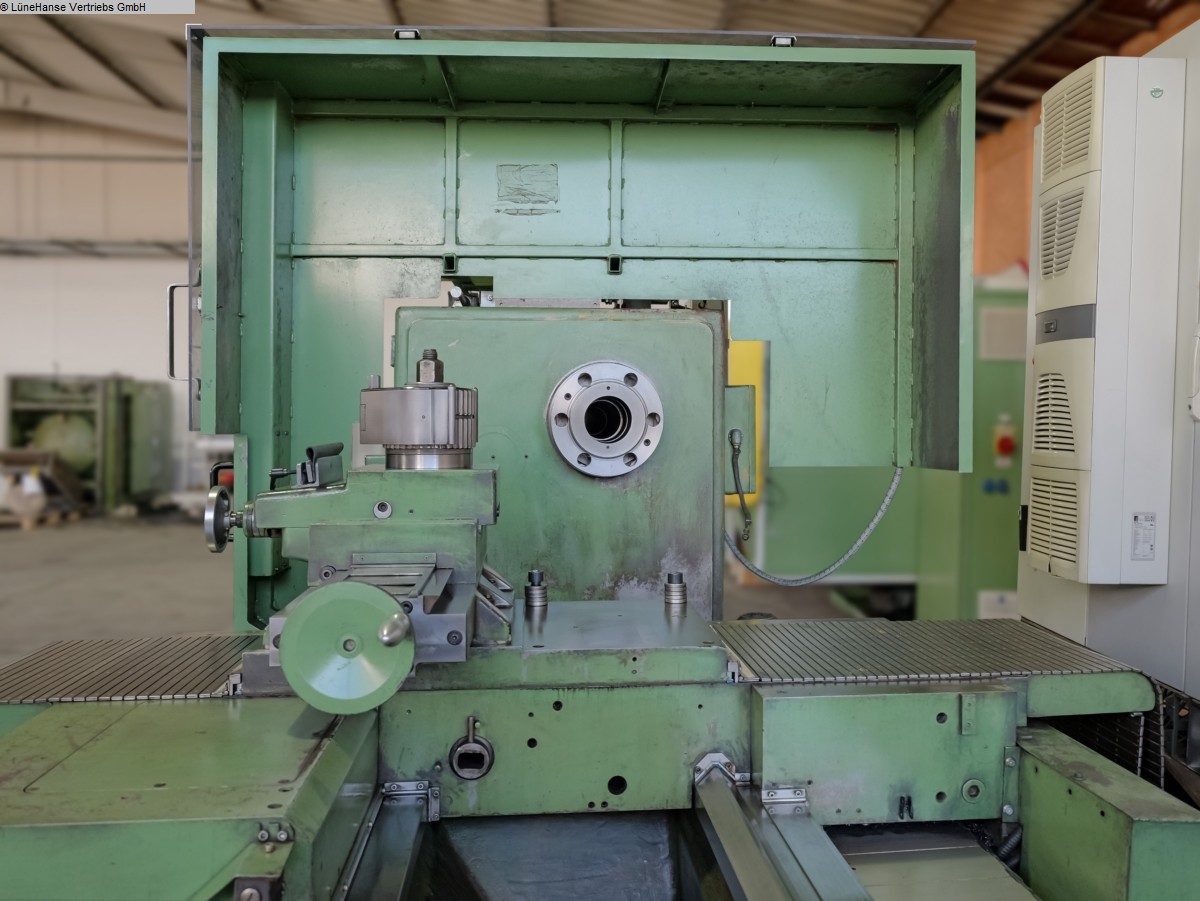

  • MAIN SPINDLE
  • spindle bore120 mm
  • spindle diameter in front bearing190 mm
  • SPEEDS OF THE MAIN SPINDLE
  • Gear stage 12,24 - 450 min-1
  • Gear stage 23,55 - 710 min-1
  • Gear stage 35,6 - 1.120 min-1
  • Drive power40 kW
  • Torque10.000 Nm

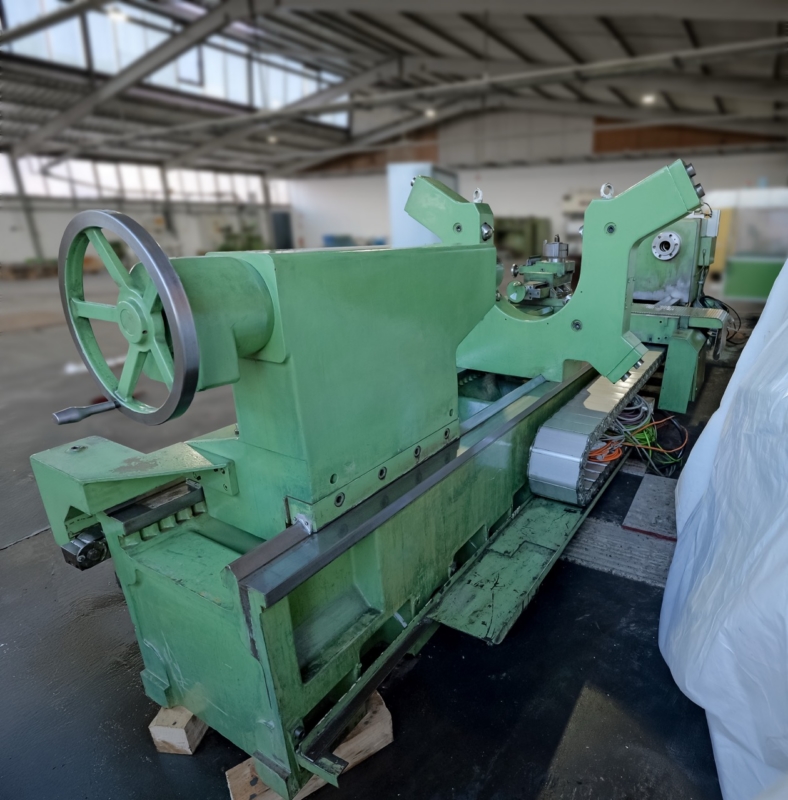

  • TAILSTOCK
  • Diameter of the quill160 mm
  • Travel of the quill250 mm
  • WORPIECE WEIGHTS
  • Between the centres, without a steady rest5 t
  • With 1 steady rest/ bezel6,3 t
  • With 2 steady rest/ bezels8 t
  • Flying in the faceplate, center of gravity distanc2 t
  • DIMENSIONS AND WEIGHTS
  • Dimensions of the machine (L x W x H)7.800 x 2.880 x 2.200 mm
  • weight of the machine ca.13 t

Ausstattung

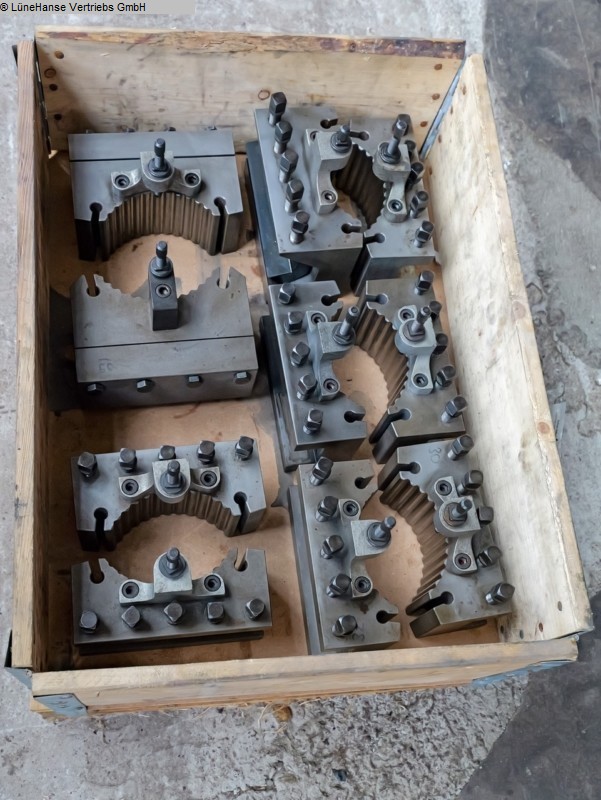

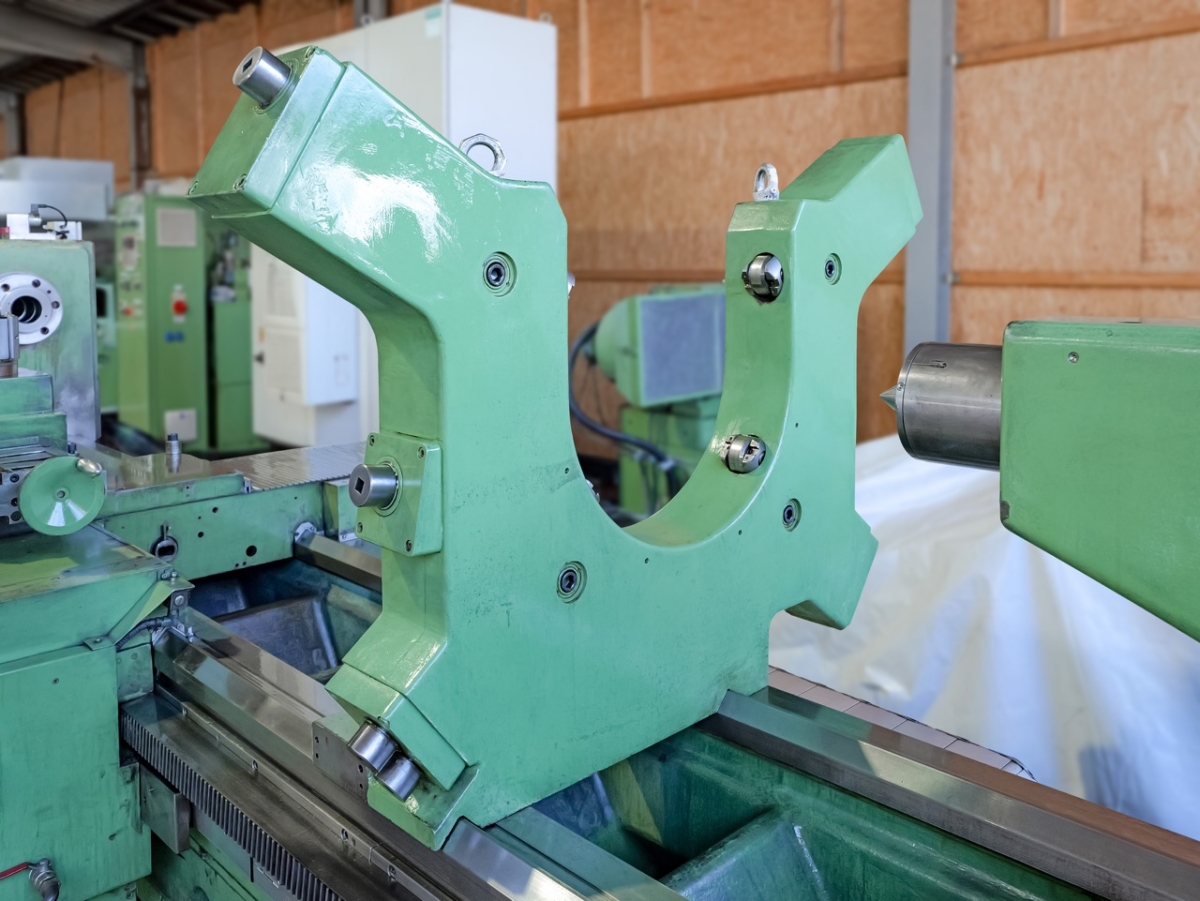

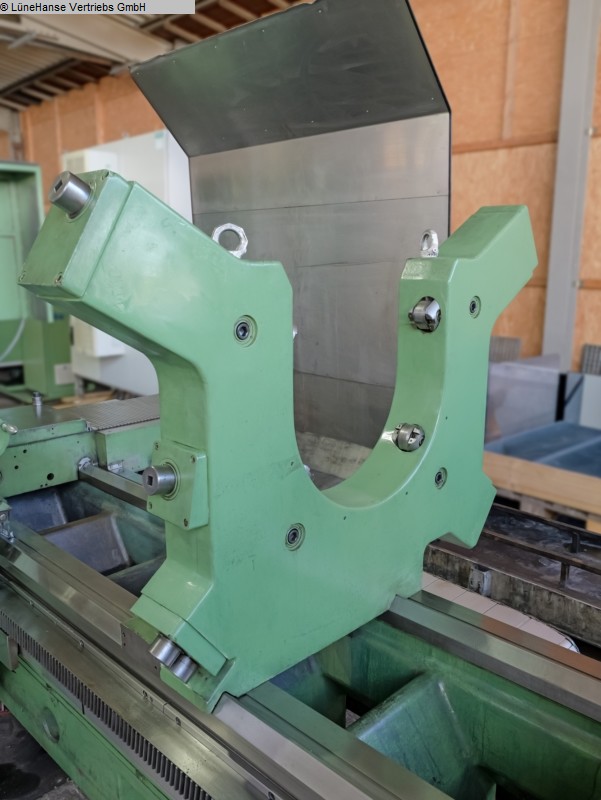

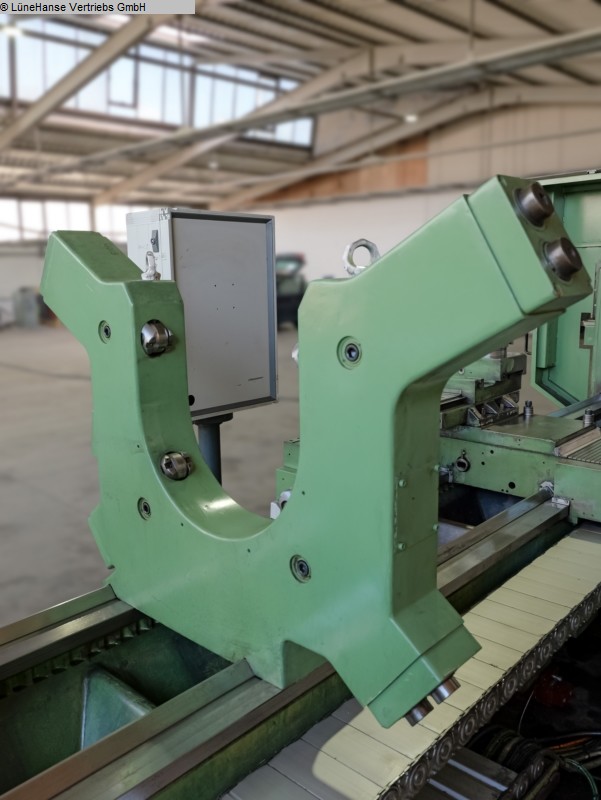

  • Fix steady rest, 10 pieces Multifix quick-change steel holder

Beschreibung

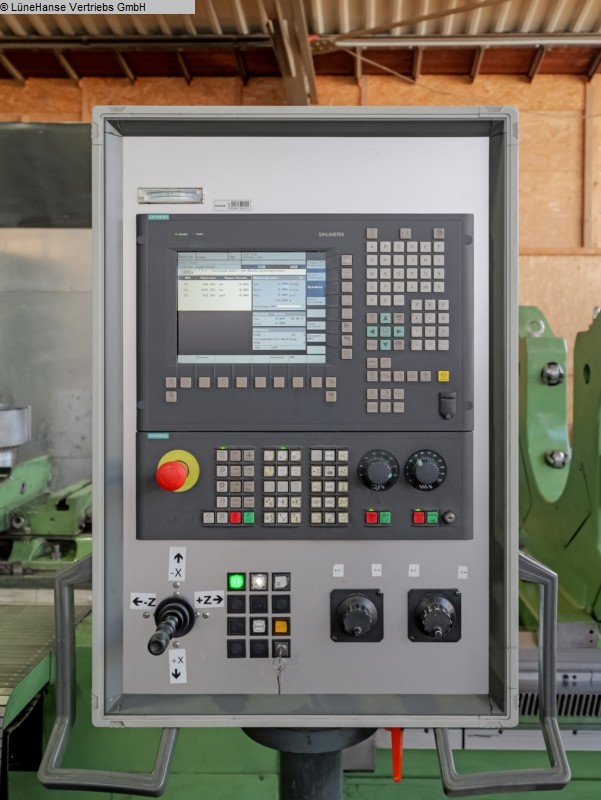

The machine has been general overhauled in 2007. As part of this overhaul, the machine was equipped with a SIEMENS SINUMERIK 840D Powerline with ManualTurn. The machine is in good condition and fully functional.
