Planer-Type Milling M/C - Double Column

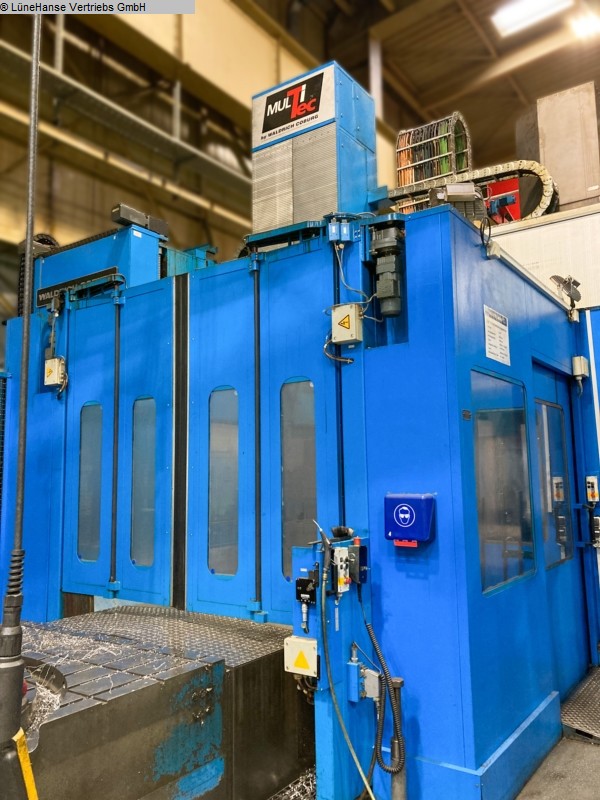

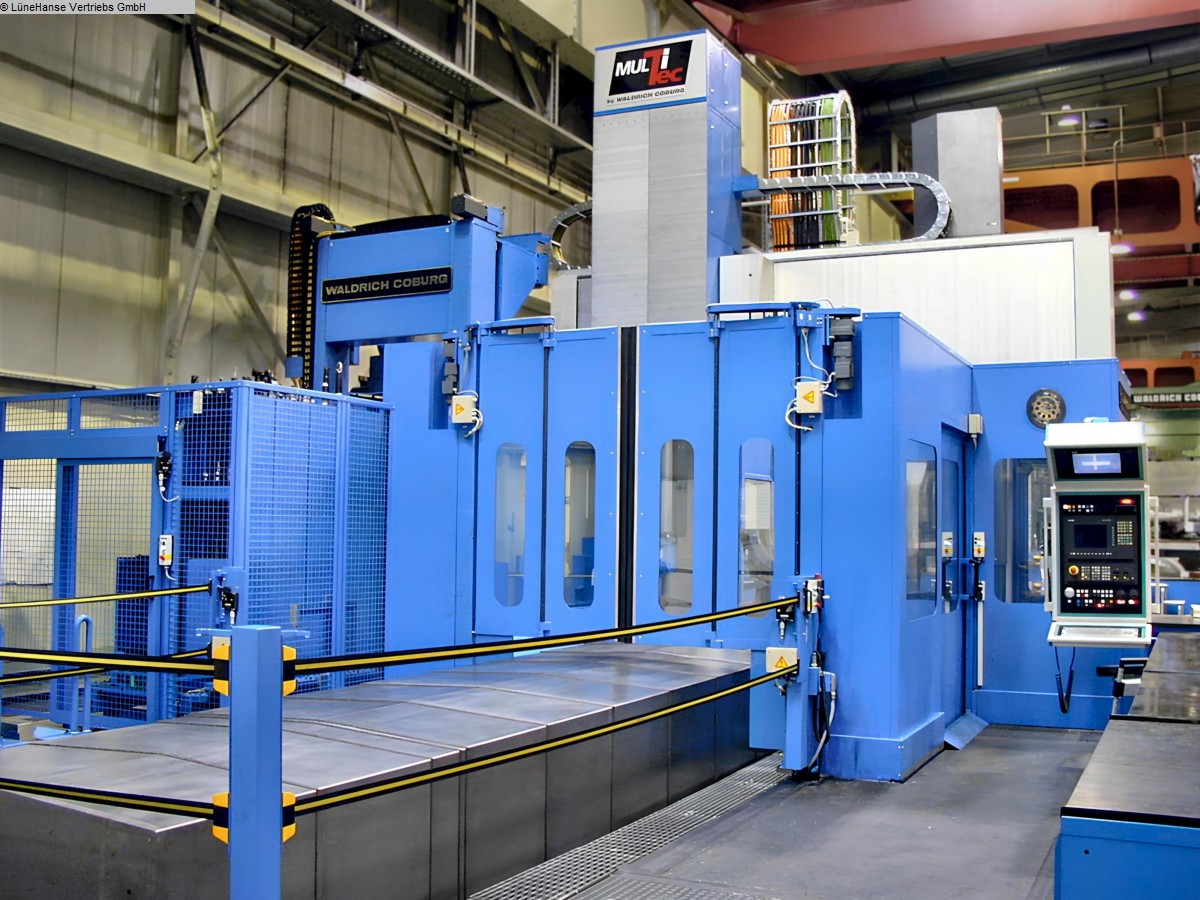

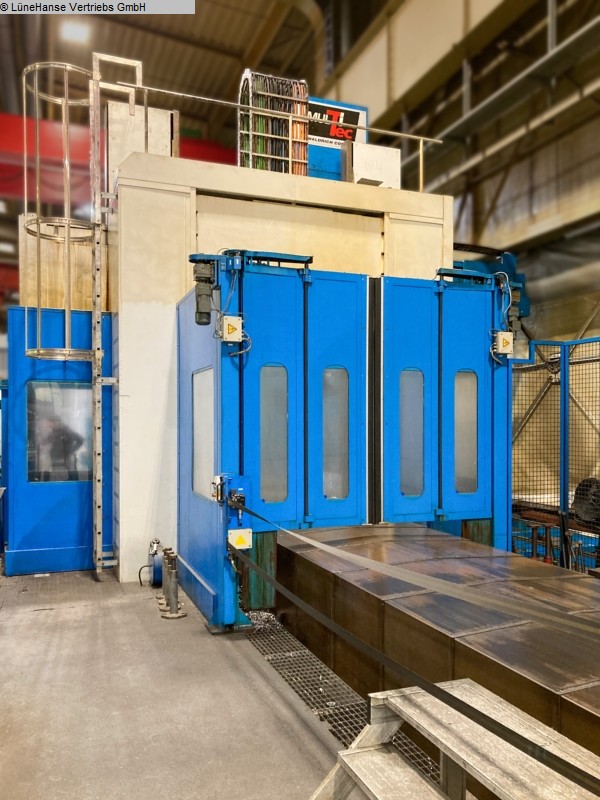

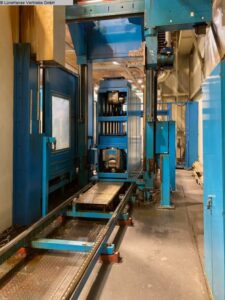

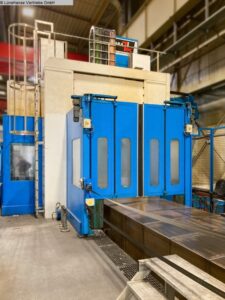

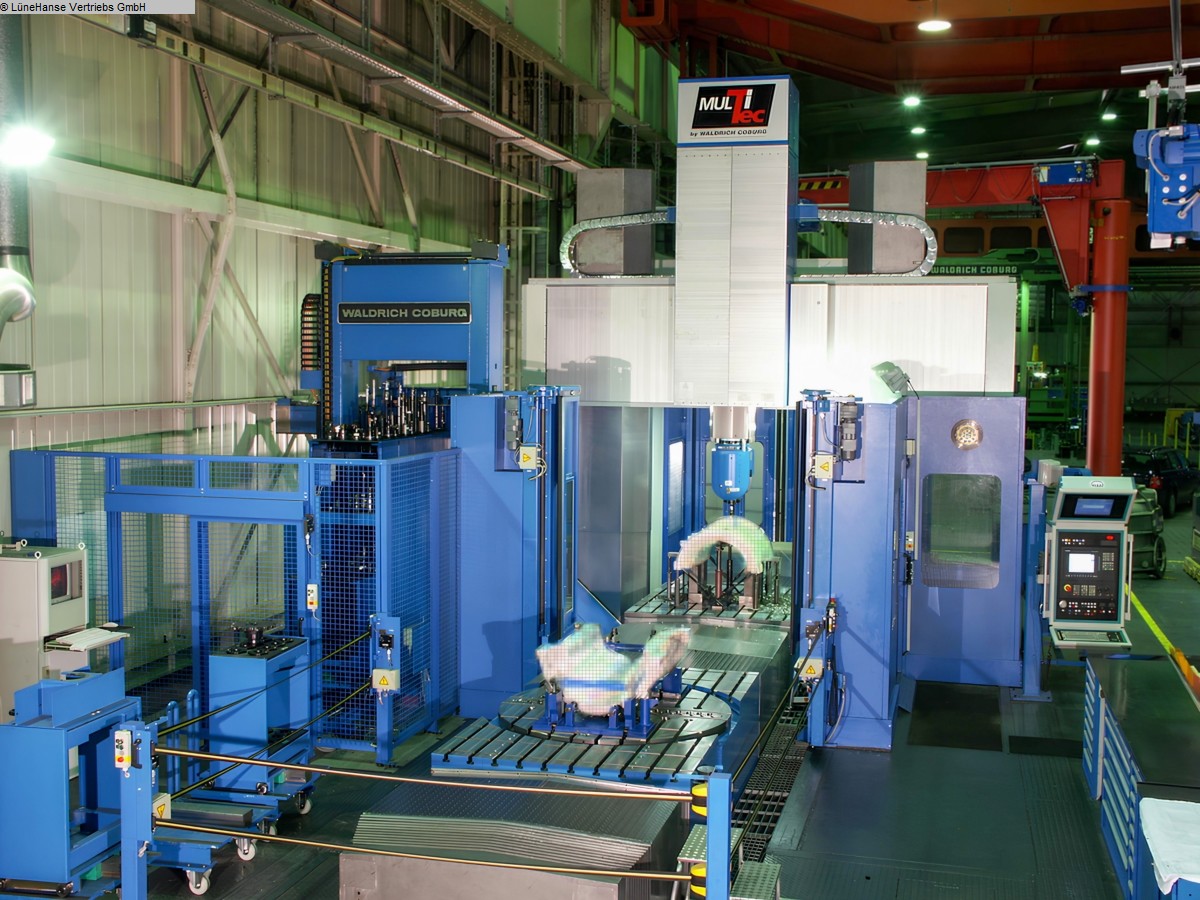

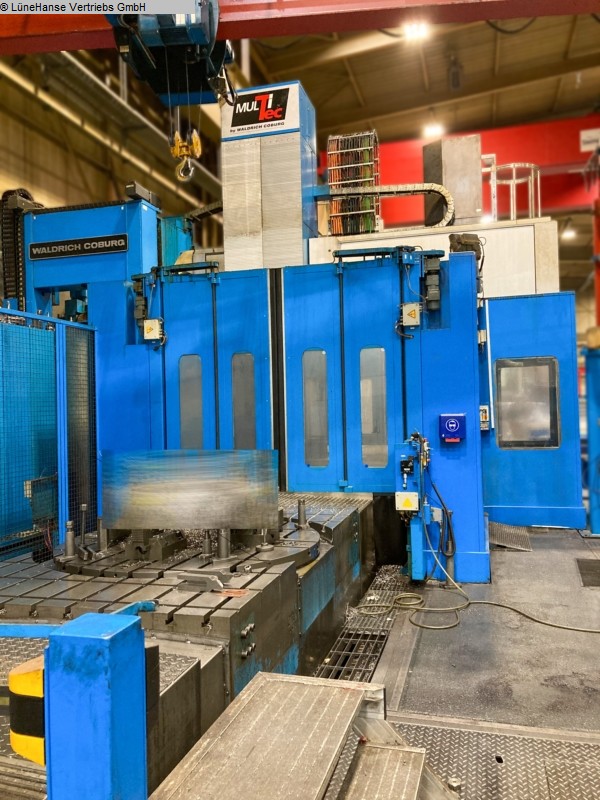

WALDRICH-COBURG MultiTec 2000 AT

MultiTec 2000 AT
other
Sold

This machine has already been sold. Please contact us for similar machines.

Details

  • Number2086-683
  • ManufacturerWALDRICH-COBURG
  • TypeMultiTec 2000 AT

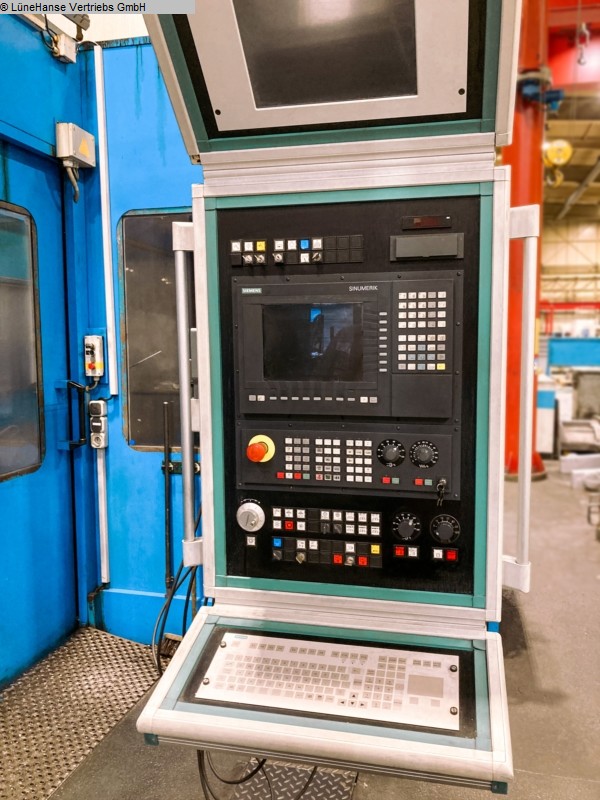

  • Controlother
  • Year2002
  • Delivery timeimmediately
  • LocationOberhausen
  • OriginGermany

Technical details

  • x-travel7.000 mm
  • y-travel3.000 mm
  • z-travel1.500 mm
  • W-axis: crossbar, vertical1.000 mm
  • B-axis GSC 125 C, swivel around X+Y-axis360° / 0,001°
  • Cross-section of the spindle slide400 x 400
  • max. tool weight50 kg
  • Tool holger according to DIN 69871ISO 50
  • Max. tool diameter when each station is occupied135 mm
  • Shuttle315 mm
  • max. tool length400 mm
  • Standard600 mm
  • (Bridge tools are automatically interchangeable)
  • Max. power45 kW
  • Rated speed330 U/min
  • Tool boreISO 50
  • Tool clamping force25 ± 2,5 kN
  • HORIZONTAL SPINDLE UNIT: Type HS 125 C
  • Max. power45 kW
  • Rated speed330 U/min
  • Max. torque1.250 Nm
  • Max. rotational speed6.000 U/min
  • Tool boreISO 50
  • Tool clamping force25 ± 2,5 kN
  • Max. power45 KW
  • Rated speed350 U/min
  • Max. torque1.250 Nm
  • Max. rotational speed6.000 U/min
  • Tool boreISO 50
  • Tool clamping force25 ± 2,5 kN

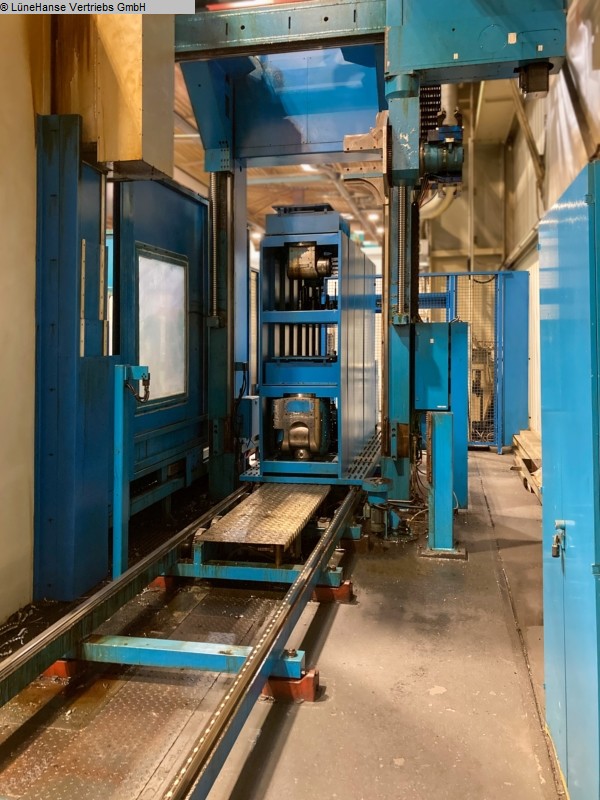

  • TOOL CARRIER for modular tools:VHST 500 C
  • Tool boreISO 50
  • Tool clamping force25 ± 2,5 kN

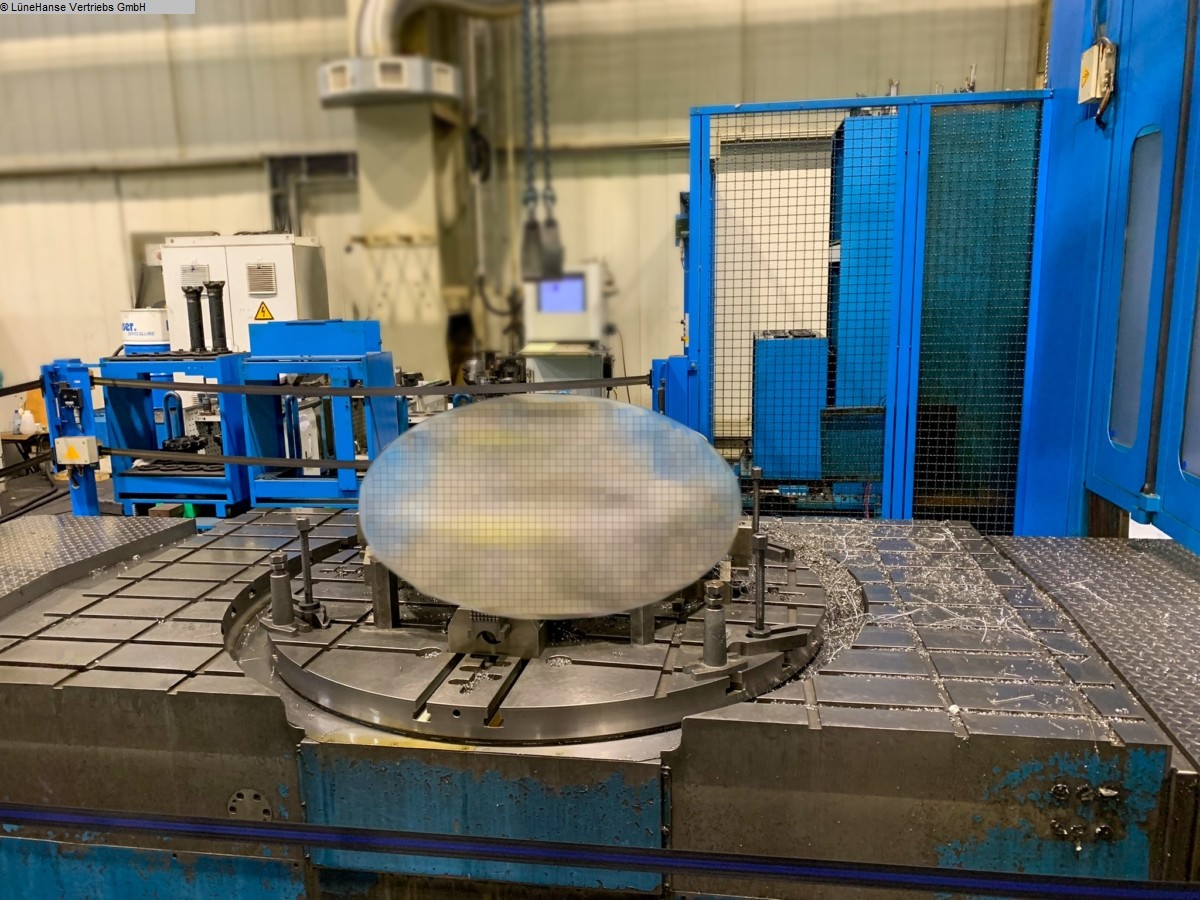

  • faceplate diameter1.750 mm
  • swing diameter2000 mm
  • distance250 mm
  • Rated speed30 U/min
  • Clamping length of front table3.000 mm
  • T-Slots in logitudinal directionH8 28 mm
  • distance250 mm
  • Table, longitudinal (X-axis)0-60.000 mm/min
  • Cross conveyor: at end of bed
